Product Details:
Payment & Shipping Terms:
|
| Function: | Silver Gold Precious Metal Melting | Colour: | Red ,black ,orange |
|---|---|---|---|
| Capacity: | 3kg Gold | Crucible: | High Purity Graphite Crucible |
| Rated Temperature: | 1150C | Rated Power: | 2.1KW |
| Packing Size: | 38.5x38.5x44cm | Shipping Weight: | 13kg |
| Melting Time: | 20-30mins/batch | ||
| High Light: | precious metal melting furnace,gold induction furnace |
||
1. Applications of gold melting furnace :
Used for melting gold ,silver and other metals which melting point is lower than 1100.C
this portable melting furnace can be used to melt gold, aluminum , silver etc.
2.Technical data of gold melting furnace :
| Capacity | 1kg | 2kg | 3kg |
| Power input( (w) | 1500 | 1600 | 1700 |
| Power supply(220v) | 50,60hz/7A | 50,60hz/7.5A | 50,60hz/8A |
| Power supply(110v) | 50,60Hz/14A | 50,60Hz/15A | 50,60Hz/16A |
| Measurement accuracy | + 0.5%FS | + 0.5%FS | + 0.5%FS |
| Working environment | 0-50°C, 30-85%RH | 0-50°C, 30-85%RH | 0-50°C, 30-85%RH |
| Net size(cm) | L31xW36xH37 | L31xW36xH37 | L31xW36xH37 |
| Packing size(cm) | L38xL38xH42 | L38xL38xH42 | L38xL38xH42 |
| Net weight(kg) | 11 | 11 | 11 |
| Packing weight(kg) | 13 | 13 | 13 |

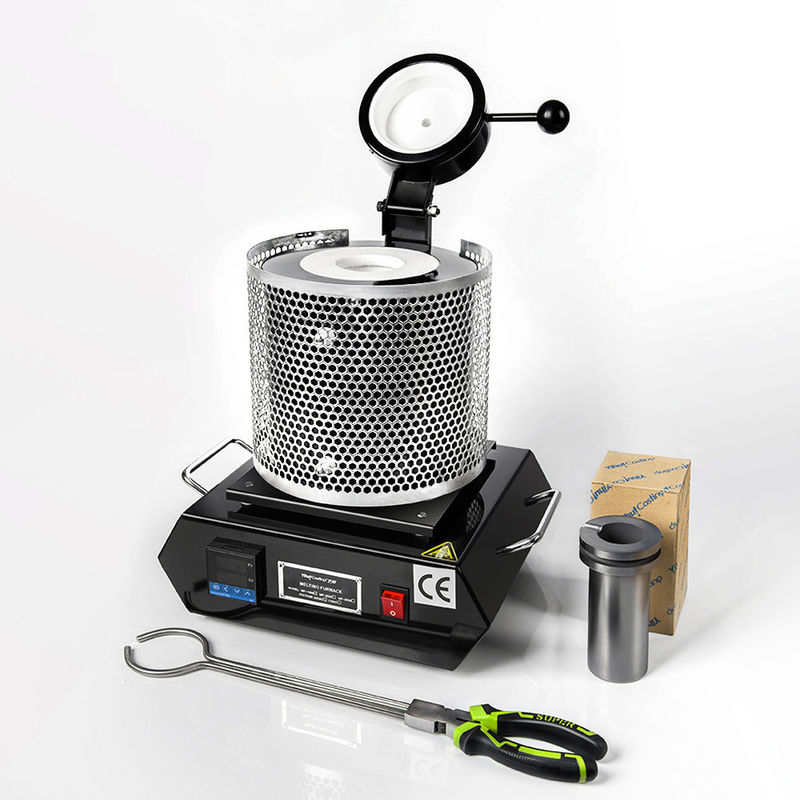

3. Instruction and features of gold melting furnace:
Fast speed of melting, saving energy, less burnt loss, pure molten liquid.
The 3KG mini portable melting furnace with compact design is ideal for professional use. By using high-quality materials, the smelting furnace can meet the requirements of the industry and the workshop, are suitable for the processing of precious metals such as gold, silver and copper.
The crucible consists of pure graphite, and is therefore the first choice for melting furnace, since high heat resistance is ensured. The crucible was formed by turning, thus maintaining the stability of the mineral completely. An outlet notch facilitates the easy pouring and filling of the melt.
The maximum adjustable temperature of our product is 1150 degrees celsius. Thus, the melting furnace is perfectly designed for the melting of precious metals. The melting point of silver is 962 degrees celsius, gold is 1064 degrees celsius and copper is 1084 degrees celsius. The regulation of the melting temperature is very user-friendly via a highly modern PID module. This module allows the digital adjustment of the setpoint temperature to the degree accurately. The PID module monitors the actual temperature in the melting chamber at 2-second intervals so that it does not overheat or cool down. The temperature is kept constant around the melting point.
4. package of small gold smelter:
Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.
5. Delivery time
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 7 days to 15 days according to different products request.
6. Our Warranty :
Warranty:
(1) control circuit 1 year ;
(2) furnace pipe 6 months;
(3) heating elements: for pure gold and silver warranty for 3 months ;if for corrosive material ,no warranty.
7. Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
