Product Details:
Payment & Shipping Terms:
|
| Name: | Lab Using Heat Treatment Furnace | Certification: | CE |
|---|---|---|---|
| Warranty: | 12 Months | Chamber Size: | 400x400x400mm |
| Temperature Control: | PID Auto Control | Max. Temperature: | 1400℃ |
| Operation Temperature: | 1300℃ | Heating Element: | Fe-Cr-Al-Mo Resistance Wire |
| Thermocouple: | K Type | Rated Power: | 18KW |
| High Light: | scientific muffle furnace,vacuum heat treatment furnace |
||

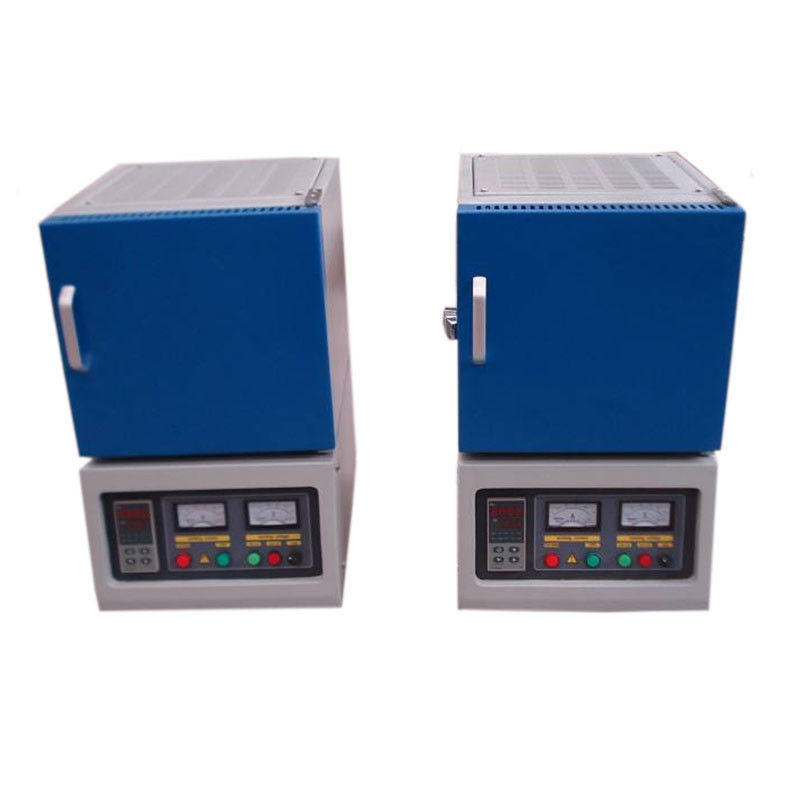

1400Degree Celsius High Temperature Electric Heat Treatment Furnace 64L Small Workpiece Heating
Electric Heat Treatment Furnace Instruction :
This heat treatment furnace is the right choice for everyday laboratory use. These models are distinguished by their exceptional workmanship, advanced and attractive design and high reliability. The muffle furnace is equipped with folding doors or lifting doors at no additional cost.
| model | SP-1400B-64L |
| Standard Working Temperature | 1400.C ( continuous ) |
| Maximum Working Temperature | 1300.C ( < 3 hrs) |
| Inside Chamber Size | Customizable |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15.C/ min (suggestion:<10.C) |
| Temperature Accuracy | +/- 1.C |
| Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
| Furnace structure | Double shell with fan cooling |
| Heating Element | resistance wire |
| Thermocouple | B type |
| Max. Power | 18KW |
| Standard package included with the furnace: | |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Door block | 1pc |
| Stainless steel hook | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 set |
Stand model of SUPER furnace:
| Model | Max. temp. | Chamber Size | Working voltage &power |
| SP-1400B-1L | 1400℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V,1.3KW |
| SP-1400B-3.4L | 1400℃ | 150x150x150mm(6”x6”x6”) | AC,1-phase,220V,2.5KW |
| SP-1400B-4.5L | 1400℃ | 150x150x200mm(6”x6”x8”) | AC,1-phase,220V.3.8KW |
| SP-1400B-8L | 1400℃ | 200x200x200mm(8”x8”x8”) | AC,1-phase,220V,5.5KW |
| SP-1400B-12L | 1400℃ | 200x200x300mm(8”x8”x12”) | AC,1-phase,220V,7KW |
| SP-1400B-18.8L | 1400℃ | 250x250x300mm(10”x10”x12”) | AC,1-phase,220V,8.5KW |
| SP-1400B-36L | 1400℃ | 300x300x400mm(12”x12”x16”) | AC,3-phase,380V,12KW |
| SP-1400B-49L | 1400℃ | 350x350x400mm(14”x14”x16”) | AC,3-phase,380V,15KW |
| SP-1400B-64L | 1400℃ | 400x400x400mm(16”x16”x16”) | AC,3-phase,380V,18KW |
| SP-1400B-125L | 1400℃ | 500x500x500mm(20”x20”x20”) | AC,3-phase,380V,24KW |
| SP-1400B-216L | 1400℃ | 600x600x600mm(24”x24”x24”) | AC,3-phase,380V,30KW |
Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the muffle furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
Delivery times :
♥For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Contact Person: Ms. Vera Zuo
Tel: 86-13607649242
