| Name: | Industrial Muffle Furnace | Chamber Size: | 100x100x150mm |
|---|---|---|---|
| Max. Tem.: | 1400℃ | Working Temperature: | 1300℃ |
| Temp. Accuracy: | ±1℃ | Rated Power: | 2KW |
| Heating Rate: | 20℃/min | Thermocouple: | S Type |
| High Light: | 1400C Digital Muffle Furnace,SiC Heating Digital Muffle Furnace,1400C benchtop muffle furnace |
||

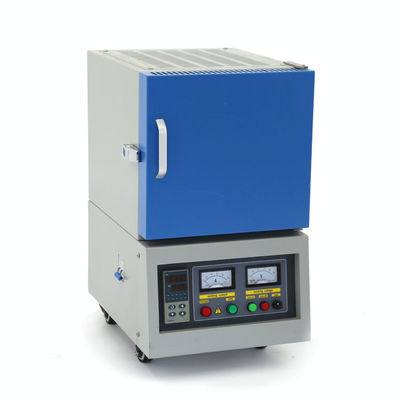

Industrial Muffle Furnace Structure:
Small benchtop industrial muffle furnace has ceramic fiber insulation, which provides faster heat-up and reduced energy consumption. Embedded heating element on top and both sides provides temperature uniformity. Drop-down door doubles as a convenient shelf for loading and unloading.
Description of industrial muffle furnace:
1400C Electric industrial muffle furnace is adopted high quality resistance wire as heating element with dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. The industrial muffle furnace chamber is adopted the 1600 type imported polycrystalline alumina fiber. Equipped with intelligent cooling system between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
Technical parameter of 1400C industrial muffle furnace:
| Items | Specification |
| Product | SP-1400B-1.5L chamber industrial muffle furnace |
| Useful chamber size | 100*100*150mm(1.5L W * H* D) |
| Max Temp. | 1400℃ ( < 3 hrs) |
| Working Temp |
0-1300℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate |
1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | SiC heating element |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 4KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By s type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤50℃ |
| Working Voltage | AC,1-phase ,220V ,50/ 60HZ |
| Optional part | Can be connected with computer if customer need |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
Industrial Muffle Furnace package and shipping :
Industrial muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,
which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
