Product Details:
Payment & Shipping Terms:
|

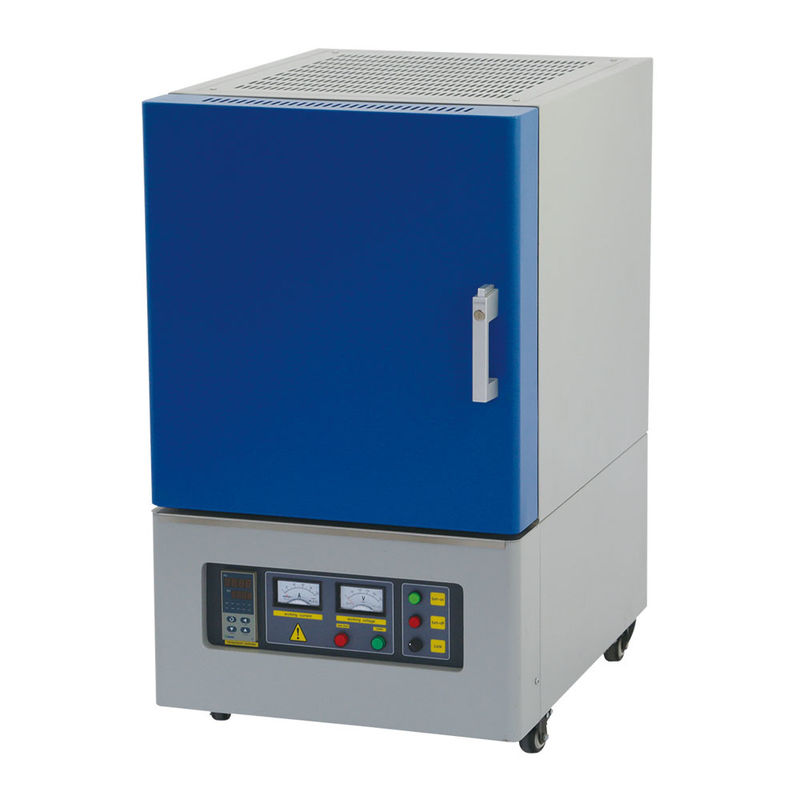

| Product: | 1400degree Muffle Chamber Furnace | Max Temperature: | 1400C |
|---|---|---|---|
| Operation Temperature: | 1300C | Insulation Material: | Light Alumina Ceramic Fiber Board |
| Heating Element: | SiC Rod | Heating Rate: | 0-20C/min |
| Temperature Accuracy: | +/-1C | Furnace Structure: | Double Shells |
| Furnace Door Open: | Side Open | Volume: | 1L |
| High Light: | scientific muffle furnace,vacuum heat treatment furnace |
||
Muffle chamber furnace application:
Muffle chamber furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientificresearch institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
Muffle Chabmer furnace function & features:
1) Muffle chamber furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this furnace much more energy saving than the furnace use common fiber materials.
Chamber muffle furnace technical data :
Chamber size:100x100x100mm,1L. More bigger can be customized.
Rated voltage: AC 220V 50/60Hz.;
Power: 1.3kW;
Max. Temperature :1400.C (< 1/2 hour) ;
Continuous Working Temperature:0-1300.C;
Max. Heating Rate:0-20.C /min;
Temperature Accuracy :+/- 1.C ;
Heating Elements : SiC rod heating element
Thermocouple : k type.
RS232/485 Communications Port optional(need extra cost).
Temperature Control:PID automatic control and auto-tune function.
30 programmable segments for precise control.
Built-in over temperature alarm and protection allows for operation without attendant.
+/- 1 ºC temperature accuracy.
Standard model of SP muffle chamber furnace :
| Model | Max. temp. | Chamber Size | Working voltage &power |
| SP-1400B-1L | 1400℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V,1.3KW |
| SP-1400B-3.4L | 1400℃ | 150x150x150mm(6”x6”x6”) | AC,1-phase,220V,2.5KW |
| SP-1400B-4.5L | 1400℃ | 150x150x200mm(6”x6”x8”) | AC,1-phase,220V.3.8KW |
| SP-1400B-8L | 1400℃ | 200x200x200mm(8”x8”x8”) | AC,1-phase,220V,5.5KW |
| SP-1400B-12L | 1400℃ | 200x200x300mm(8”x8”x12”) | AC,1-phase,220V,7KW |
| SP-1400B-18.8L | 1400℃ | 250x250x300mm(10”x10”x12”) | AC,1-phase,220V,8.5KW |
| SP-1400B-36L | 1400℃ | 300x300x400mm(12”x12”x16”) | AC,3-phase,380V,12KW |
| SP-1400B-49L | 1400℃ | 350x350x400mm(14”x14”x16”) | AC,3-phase,380V,15KW |
| SP-1400B-64L | 1400℃ | 400x400x400mm(16”x16”x16”) | AC,3-phase,380V,18KW |
| SP-1400B-125L | 1400℃ | 500x500x500mm(20”x20”x20”) | AC,3-phase,380V,24KW |
| SP-1400B-216L | 1400℃ | 600x600x600mm(24”x24”x24”) | AC,3-phase,380V,30KW |
Warranty: One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under this coverage
Packing and shipping :
Muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
