1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering

China Henan Super Machinery Equipment Co.,Ltd certification
China Henan Super Machinery Equipment Co.,Ltd certification
It's good cooperation with the Super Machinery , we hope keep long business.

—— David Smith

The high temperature tube furnace received, the outer packaging is very strong, and there are a lot of accessories. Thank you for your patience to explain the furnace before buying.

—— Simon Liu

I'm Online Chat Now

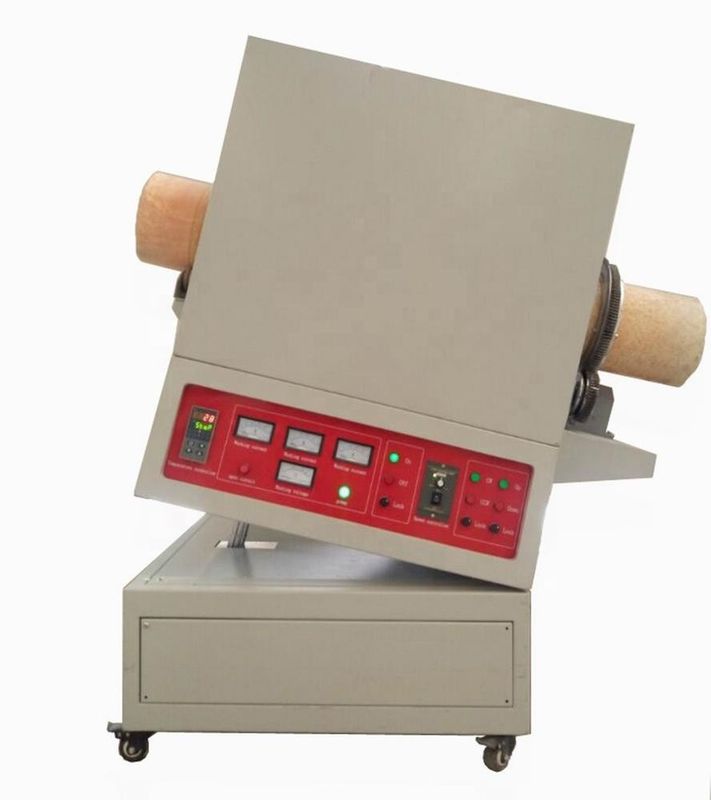

1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering

1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering
1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering

Large Image :  1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1400TT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 15-20 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 sets/month
Detailed Product Description
Name: Industrial Muffle Furnace Tube Diameter: OD40/50/60/80/100mm
Max. Temp.: 1400℃ Operation Temp.: 1300℃
Heating Element: SiC Rod Heating Rate: Max 20C/min
Temp. Accuracy: ±1℃ Furnace Tilt Angle: 0-30° Variable
High Light:

quartz tube furnace

,

high temperature laboratory furnace



          1400C Tiltable Industrial Muffle Furnace Compound Sintering



1400C Electric Tiltable Industrial Muffle Furnace Brief Introduction:

 SP tube industrial muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.



High temperature industrial muffle furnace used to produce a large number of nano carbon materials, such as, Carbon nanotube powder, carbon nano tube film and directional carbon nano tubes, etc. It can also be used vacuum sintering, atmosphere protective sintering, nano material production,

1400C Tiltable High Temperature Industrial Muffle Furnace Compound Sintering 0



Outstanding features of 1400C tiltable industrial muffle furnace:

1) Tiltl angle can up to 30° for material pour out .
2) Variable diameter tube to keep uniform heating
3) Programmable and PID automatic control
4) Dual zone or multra zone temperature control is possible
5) Metal key or touch panel operating interface for your option
6) Inputting protective gas or atmosphere is also possible



1400C Tiltable Tube Industrial Muffle Furnace Main charactertics:

1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.

2: Furnace chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .

3: Double shell with fan cooling to make the shell temperature close to the room temperature.

4: Intergrated doule circruit to make the furnace more safe , stable and realiable.

5: Humanized design and advaned technics to make the furnace more beautiful and durable.

6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.



Main Technical parameter of 1400C tube industrial muffle  furnace

Product name and model SP-1400TT rotary tube industrial muffle furnace
Furnace tube OD(OD×L) Dia 40/50/60/80/100mm
Tube heating length  200-800mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1200°C working time ( < 3 hours)
Working temperature 400-1100°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element Fe-Cr-Al-Mo wire
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shells with fan cooling
Furnace tilt angle 0-30°
Temperature display mode Four figure liquid crystal display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added



Standard models of SUPER 1400C vacuum tube industrial muffle furnace :

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1400TT-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400TT-84 Φ80x400 mm(3.2"x16") TW-1A;1L/S;120W;110V/220V
SP-1400TT-104 Φ100x400 mm(4.0"x16") TW-1A;1L/S;120W;110V/220V



SUPER company is able to supply more different shapes furnaces according to customers' requirement . Welcome to let us know your demands , we are ready to supply service to you .
