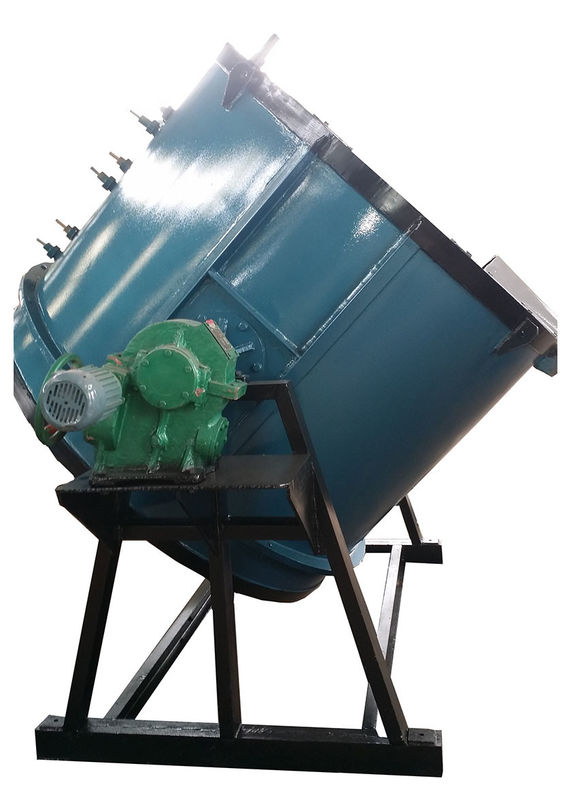

Industry Heat Treatment Crucible Melting Furnace , Wire Heating Metal Melting Machine

Industry Heat Treatment Crucible Melting Furnace , Wire Heating Metal Melting Machine
Industry Heat Treatment Crucible Melting Furnace , Wire Heating Metal Melting Machine

Large Image :  Industry Heat Treatment Crucible Melting Furnace , Wire Heating Metal Melting Machine

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: GR-60-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets/month
Detailed Product Description
Goods: Aluminum Melting Furnace Application: Aluminum Copper Melting
Model: GR-60-8 Rated Temperature: 800℃
Working Zone Size: Dia500x600mm Pipe Material: Stainless Steel
Rated Power: 60kw Tilting System: By Reduction Gear
Condition: New Warranty: 12 Months
High Light:

electric metal melting furnace

,

electric crucible furnace

            Industry Heat Treatment Aluminum Melting Furnace

                         Resistance Wire Heating GR-60-8


Aluminum melting furnace function :
This resistance crucible furnace is mainly used for aluminum melting in industry factory , it is our achievement after over years research and development according to different customers' requirement .


Aluminum melting furnace structure:
The equipment consists of a furnace body, a furnace cover, a power supply cabinet and a temperature control system.
The shell of the furnace body is welded and formed by steel. The inner shaft type furnace is built with 0.6g/cm3 ultra-light energy-saving refractory brick. The heavy-duty refractory brick is built for the load-bearing part and the easy-to-collision part (the appropriate amount of high-temperature bonding is added to the mud during the masonry). Agent) to enhance the structural strength of the lining. The insulation layer is made of aluminum silicate refractory fiber, asbestos board and other insulation materials to improve the insulation performance of the furnace body and reduce the temperature of the furnace side surface.

The heating element is made of 0Cr25Al5 alloy wire, spirally wound, placed on the wire brick around the furnace, and fixed with a custom socket to prevent falling off.
The furnace cover is also welded by steel and has a long service life. The lining of the furnace cover is made of aluminum silicate refractory fiber for heat insulation and heat preservation, which can improve the heat preservation performance of the furnace cover, prevent heat dissipation, and reduce the weight of the furnace cover

Aluminum melting furnace structure technical parameter :

Model GR-60-8
Loading capacity in theory 300kg aluminum
Effective availability 80%
Loading capacity 100-300kg aluminum per batch
Inner chamber size Dia. 500*600mm
Rated power 20KW
Rated voltage 3 phase 380V 50HZ
Rated temperature 800℃
Furnace shell Made of 10mm structure steel
Furnace lining Super light and energy saving refractory brick and insulation brick
Furnace crucible graphite crucible (supply)
Tilting system By reduction gear
Furnace lid Yes
Heating element Resistance wire
Power control cabinet Supply
No-load heating time to max temp. from room temperature Less than 2.5 hours


Technical support and after sale service :
1. Prompt technical consultation and support will be offered .
2. Provide consumable parts with favorable price
3. A whole year warranty and lifetime maintenance .

Standard models of resistance crucible furnace for aluminum melting :

aluminum melting resistance crucible furnace
Product model crucible size loading capacity (AL) rated power rated temperature
GR-20-8 Φ300x430mm 50-100kg 20kw 800°C
GR-60-8 Φ500x600mm 100-250kg 60kw 800°C
GR-75-8 Φ500x870mm 250-400kg 75kw 800°C

We are also able to produce this melting furnace according to customers' requirement .


Warranty

·  Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.

·  This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

·  Replacement will be shipped to you after photo or other evidence are provided and investigated
