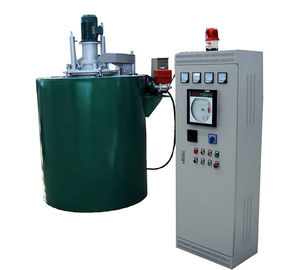

Low Carbon Steel Gas Carburizing Furnace Well Type Electric 380 / 440V Voltage

Low Carbon Steel Gas Carburizing Furnace Well Type Electric 380 / 440V Voltage
Low Carbon Steel Gas Carburizing Furnace Well Type Electric 380 / 440V Voltage

Large Image :  Low Carbon Steel Gas Carburizing Furnace Well Type Electric 380 / 440V Voltage

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: RQ3-90-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or container
Delivery Time: 15-20 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Name: Carburizing Electric Furnace Model: RQ3-90-9
Rated Temp: 950℃ Rated Voltage: 380/440V
Rated Power: 90KW Working Zone: Dia.600*900mm
Function: For Low Carbon Steel Warranty: 12 Months
Pipe Material: Stainless Steel Dimension: 2000x1800x3000mm
High Light:

vacuum carburizing furnace

,

resistance heating furnace

        RQ3-90-9 Well Type Low Carbon Steel Gas Carburizing Electric Furnace

Characters of steel gas carburizing furnace:

The high temperature controlled gas carburizing furnace, mainly be used for protective atmosphere carburizing, quenching. Suitable for variety of workpieces carburizing, carbonitriding infiltration , multicomponent permeation heat treatment process.



Main Performance Index of carburizing furnace:
1.1 carbon potential uniformity: ≤±0.05%CP;
1.2 carbon potential stability: ≤±0.02%CP;
1.3 carbide uniformity grade: ≤±1 grade;
1.4 Effective case depth tolerance: ≤±0.1mm for case depth≤1mm; ±5% for case depth: ≥1mm; (same bath material);
1.5 carbon potential control method: oxygen probe and PID regulation;



Parts Description of steel carburizing furnace:
1), Shell:made by steel plate and structural steel.
2), Inside of furnace cover: made by stainless steel plate.
3), Burner liner: using the super light and energy conservation micropore fire-resistant heat reserving brick
4), Aluminum silicate fiber at between burner liner and shell, and also fill full of thermo-insulating power in gap.
5), Resistance wire: use the 0Cr25Al5 high resistor alloy wire installed upon brick.
6), Furnace cover: use the manual lever lifter or motor-driven or hydraulic.

7) , We have installed fan which made by a heat-resistance stainless steel shaft and fan blade for uniform heating the work-piece
8), Limit switch installed near the lifter device for safety operation.





Characteristics of gas carburizing furnace:

1) Rational structure, uniform furnace temperature, small upper & lower temperature difference in working zone, especially applicable for heating and heat treatment for long axial work-piece.

2) Adopt energy-saving furnace lining, fast temperature rise, low empty furnace consumption, save more than 20% of energy compare with old product.

3) The control system can be equipped with normal control instrument or instrument with micro-processor program control according to actual need.

4) When needed during process, protective atmosphere can be fed into the furnace to realize little-oxidizing heating.

5) Each product is installed with safety interlock and over-temperature device to provide reliable and safe operation and use.



Standard models of SUPER gas carburizing furnace:



Name Model

Rated

Power

Rated

Voltage

Rated

Temp.



Effective Size

Remarks

Well- type Gas

Carburizing Furnace

RQ3-25-9 25 kw 3P. 380 V 950.C Φ300*450mm

Applicable for carburizing of steel parts,

protective atmosphere quenching and

other heat treatment

RQ3-35-9 35 kw 3P. 380 V 950.C Φ300*600mm
RQ3-60-9 60 kw 3P. 380 V 950.C Φ450*600mm
RQ3-75-9 75 kw 3P. 380 V 950.C Φ450*900mm
RQ3-90-9 90 kw 3P. 380 V 950.C Φ600*900mm
RQ3-105-9 105kw 3P. 380 V 950.C Φ600*1200mm



Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
