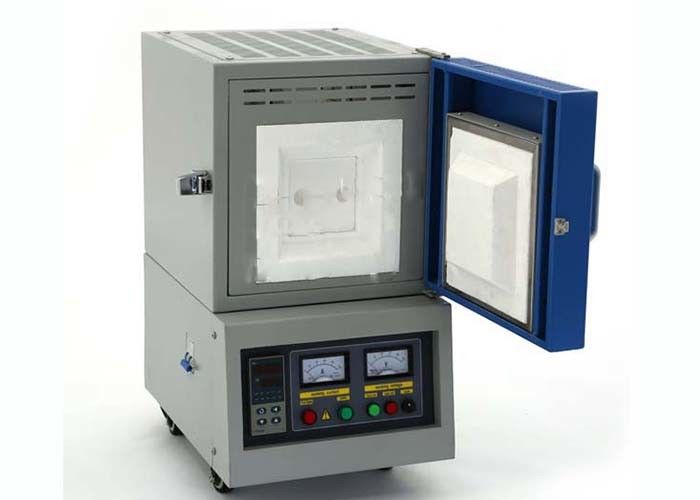

20C / Min Programmable Muffle Furnace MoSi2 Heating Powder Sintering Dual Shell Structure

20C / Min Programmable Muffle Furnace MoSi2 Heating Powder Sintering Dual Shell Structure
20C / Min Programmable Muffle Furnace MoSi2 Heating Powder Sintering Dual Shell Structure

Large Image :  20C / Min Programmable Muffle Furnace MoSi2 Heating Powder Sintering Dual Shell Structure

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1800B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 400sets/month
Detailed Product Description
Product: Electric Furnace Max. Temp: 1800℃
Operation Temperature: 1700℃ Rated Power: Depends On Chamber Size
Voltage: AC 220V± 10V 50Hz/60HZ Type: Resistance Furnace
Heating Rate: Max 20C/min Heating Element: MoSi2 Rod Heating Element
Warranty: 1 Year Temp Control: 30 Segment Programmable Controller
High Light:

scientific muffle furnace

,

vacuum heat treatment furnace

     MoSi2 Heating 1800C Low Price Laboratory Electric Furnace Powder Sintering



Laboratory  Furnace Description:

Laboratory furnace is adopted high quality silicon molybdenum rod as heating element with dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. The furnace chamber is adopted the 1900 type imported polycrystalline alumina fiber. Equipped with intelligent cooling system between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.





Laboratory Furnace Application:

Super Laboratory furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

1. Gravimetric analysis;

2. Sintering;

3. Quantitative analysis;

4. Heat treating;

5. Glass preparation;



Laboratory Furnace Character:

A) Low thermal mass insulation for fast response & energy efficiency

B)Shell structure: double shell structure with aircooled system to ensure the furnace shell close to room temperature when the equipment is running and avoid accidents

C) Our electric furnace uses high quality heating element ensure furnace long service life

D) Temperature control safety: with overtemperature protection; broken even protection; leakage protection;equipment operation safe and reliable

E) Chamber material: alumina microcrystalline fiber to ensure uniform temperature field and good insulation properties



Technical Parameter of Laboratory Furnace :

Items Specification
Product SP-1800B-8 high temperature metal melting furnace
Useful chamber size 200*200*200mm(8L W * H* D)
Max Temp 1800℃ ( < 3 hrs)
Working Temp 100-1700℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element Super MoSi2 rod heating element
Furnace liner Light durable ceramic fiber plate
Rated Power: 7KW
Furnace shell Double shells with fan cooling
Temp. measurement By B type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55.C
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc  3. Extra MoSi2 rod  2pcs





Stanard models of SUPER MUFFLE FURNACE:

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1800B-1 1800℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1800B-4.5 1800℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1800B-8 1800℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1800B-12 1800℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1800B-36 1800℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW



Company introduction

Our company is specialized in manufacturing muffle furnace,atmosphere furnace,tube furnace,crucible furnace,dental furnace,vacuum furnace,heat element(SIC,Mosi2),ceramic alumina fiber board,alumina tube,alumina crucible and related accessories.


The business was begun in 2010.Following the expansion of the company's business, Henan Super Machinery Equipment Co.,Ltd, a new company was just established.
Our products are exquisite beauty,excellent performances insulation and energy saving. Thousands of satisfied customers have written to us to express their satisfaction with our products.


With 7 years of experience in providing high temperature electric lab furnaces. we are committed to providing you with the best service in China and all over the world.
