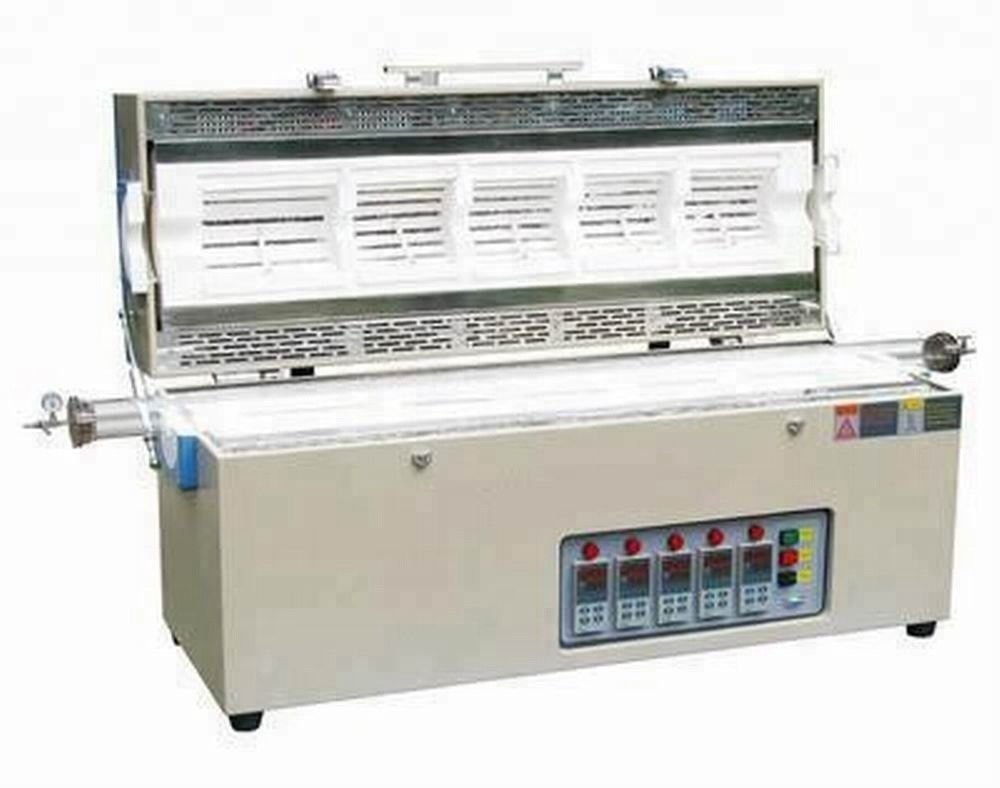

Laboratory Vacuum High Temperature Tube Furnace Resistance Wire Heating Element

Laboratory Vacuum High Temperature Tube Furnace Resistance Wire Heating Element
Laboratory Vacuum High Temperature Tube Furnace Resistance Wire Heating Element

Large Image :  Laboratory Vacuum High Temperature Tube Furnace Resistance Wire Heating Element

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1200T-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 500sets/month
Detailed Product Description
Product: Multi-temperatuer Zone Tube Furnace Max. Temp: 1200℃
Operation Temp.: 1100℃ Furnace Type: Split
Insulation Material: Alumina Ceramic Fiber Board Chamber Size: 80*200+200+200mm(OD*L)
Classification: Laboratory Heating Equipments Temp Uniformity: ±1℃
Voltage: AC 380 Plus/minus 10V/50Hz Type: Resistance Furnace
High Light:

vacuum tube furnace

,

quartz tube furnace

      Vacuum Multi-Temperature Zone Tube Furnace Resistance Wire Heating Element

Multi-temperature zone tube furnace specification :

This is a safety tube furnace with single temperature zone and multi-temperature zone. It has intelligent pressure protection function, combustible gas detection function, pressure equalization function, intelligent intake, 30 segments cloud data storage and other functions. Man-machine interface control with an accuracy of up to 1.C. This high temperature tube furnace is particularly suitable for annealing and sintering samples under atmospheric or vacuum conditions. The heating element is evenly distributed above and below the furnace tube, and the temperature field is uniform. The device is widely used in semiconductor, nanomaterials, carbon fiber, graphene and other new materials, new technology fields.



vacuum multi-temperature zone tube furnace adopts high pure alumina or quartz tube, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc.





Main technical parameter of SUPER double heating zone tube furnace:

Product name and model SP-1200T-2 vacuum tube furnace
Heating tube size(OD×L) Dia80*  200+200+200mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1200°C working time ( < 3 hours)
Working temperature 400-1100°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element resistance wire
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added





SP-1200T-2 double heating zone tube furnace services:



Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 20 days according to different products request.



Our Warranty :

 One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
