1700C High Temperature Muffle Furnace Ceramic Sintring New Product

1700C High Temperature Muffle Furnace Ceramic Sintring New Product
1700C High Temperature Muffle Furnace Ceramic Sintring New Product

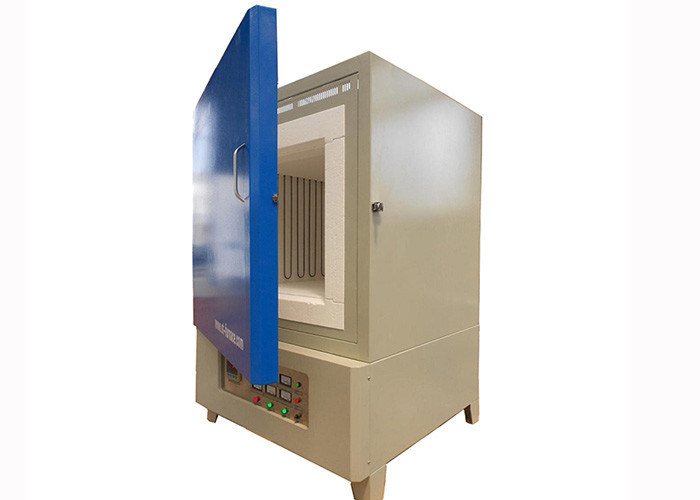

Large Image :  1700C High Temperature Muffle Furnace Ceramic Sintring New Product

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1700B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 400sets/month
Detailed Product Description
Name: Lab Muffle Furnace Max Temperature: 1700℃
Operation Temperature: 1600℃ Insulation Material: Light Alumina Ceramic Fiber Board
Heating Element: MoSi2 Heater Heating Rate: 0-20℃/min
Temperature Accuracy: +/-1℃ Furnace Structure: Double Shells
Temperature Control: 50 Segments Programmable Controller Power Source: Electric
High Light:

1700C High Temperature Muffle Furnace

,

Ceramic Sintring High Temperature Muffle Furnace

,

1700C electric muffle furnace

            High Temperature 1700C Muffle Ceramic Sintring Furnace



1700C Muffle Ceramic Sintering Furnace Application:





SUPER Box 1700℃ Ceramic Sintering Furnace, Ceramic Kilns are Ideal Fit for Ceramics Engineers to producing High Quality Ceramic Process Output across the wide variety of process variations:

  • Ceramic Annealing
  • Dental Applications
  • Metallizing & Powder processing
  • Thermal Cycling for hardening and brazing
  • Co-Firing for creation of multilayer ceramics.
  • Flattening
  • Ceramic arts and crafts



1700C Muffle Ceramic Sintering Furnace Technical Data :



Items Specification
Product SP-1700B-12L chamber electric lab  Ceramic Sintering Furnace
Useful chamber size 200*200*300mm(12L W * H* D)
Max Temp 1700℃ ( < 3 hrs)
Working Temp 0-1600℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element High
Furnace liner Light durable ceramic fiber plate
Rated Power: 5KW
Furnace shell Double shells with fan cooling
Temp. measurement By K type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55.C
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc



1700C Muffle Ceramic Sintering Furnace  Features:

1700C Muffle Ceramic Sintering Furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this ceramic sintering furnace much more energy saving than the furnace use common fiber materials.



1700C Muffle Ceramic Sintering Furnace:

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1700B-1L 1700℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1700B-3.4L 1700℃ 150x150x150mm (6"x6"x6") AC,1-phase,220V,3.5KW
SP-1700B-4.5L 1700℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1700B-8L 1700℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1700B-12L 1700℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1700B-18.8L 1700℃ 250x250x300mm (10"x10"x12") AC,3-phase,220V,11KW
SP-1700B-36L 1700℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW
SP-1700B-49L 1700℃ 350x350x400mm (14"x14"x16") AC,3-phase,380V,21KW
SP-1700B-64L 1700℃ 400x400x400mm (16"x16"x16") AC,3-phase,380V24KW
SP-1700B-125L 1700℃ 500x500x500mm (20"x20"x20") AC,3-phase,380V,36KW



1200C Muffle Ceramic Sintering Furnace:

Model Max. temp Chamber Size Working voltage &power
SP-1200B-1L 1200℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1KW
SP-1200B-3.4L 1200℃ 150x150x150mm(6”x6”x6”) AC,1-phase,220V,1.6KW
SP-1200B-4.5L 1200℃ 150x150x200mm(6”x6”x8”) AC,1-phase,220V.2KW
SP-1200B-8L 1200℃ 200x200x200mm(8”x8”x8”) AC,1-phase,220V,4KW
SP-1200B-12L 1200℃ 200x200x300mm(8”x8”x12”) AC,1-phase,220V,5KW
SP-1200B-18.8L 1200℃ 250x250x300mm(10”x10”x12”) AC,1-phase,220V,6KW
SP-1200B-36L 1200℃ 300x300x400mm(12”x12”x16”) AC,1-phase,220V,7.5KW
SP-1200B-49L 1200℃ 350x350x400mm(14”x14”x16”) AC,1-phase,220V,9KW
SP-1200B-64L 1200℃ 400x400x400mm(16”x16”x16”) AC,3-phase,380V,11KW
SP-1200B-125L 1200℃ 500x500x500mm(20”x20”x20”) AC,3-phase,380V,15KW
SP-1200B-216L 1200℃ 600x600x600mm(24”x24”x24”) AC,3-phase,380V,18KW



1700C High Temperature Muffle Furnace Ceramic Sintring New Product 0

Warranty for 1700C Muffle Ceramic Sintering Furnace

: One year limited warranty with lifetime support, excluding heating element

and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage

from wrong operate and use are not under this coverage



Muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,
which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.



If you are interest in our 1700C Muffle Ceramic Sintering Furnace ,please leave message to us to get more information about this furnace .
