Product Details:
Payment & Shipping Terms:
|
| Name: | Lab Vacuum Atmosphere Furnace | Max. Temperature: | 1200C |
|---|---|---|---|
| Operation Temperature: | 1100C | Heating Element: | Fe-Cr-Al-Mo Wire |
| Temperature Control: | 30 Segments Programable And PID Auto Control | Furnace Structure: | Double Shells With Fan Cooling |
| Thermocouple: | K Type | Heating Rate: | 20C/min. |
| Tempeature Accuacy: | +/-1C | ||
| High Light: | nitrogen atmosphere furnace,controlled atmosphere furnace |
||

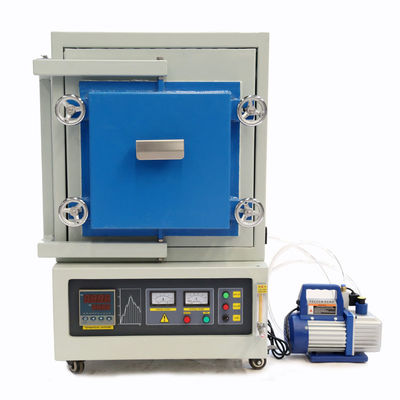

1200C Lab Vacuum Atmosphere Furnace 12L Electric Heating Ceramic Fiber Board Thermal Insulation
Introduction of lab vacuum atmosphere furnace:
SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nigrogen ,Argon and other inert gas. It is an ideal furnace for sintering ,reducing with inert-atmosphere in labs of university ,research institution and industrial company.
SP-1600BV furnace can be working under Vacuum, Nitrogen and other inert gases atmosphere situation, which consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 8"x8"x12", and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1 oC and 30 segments programmable up to 1200oC. It is an ideal tool for materials annealing and sintering in your research laboratory.
Technical data :
| name and model | ST-1200RV 1200C electric heating vacuum atmosphere |
| Chamber Size | 200x200x300mm (8"x8"x12") |
| Working Temperature | 1100°C (continuous) |
| Maximum Temperature | 1200°C (for short time) |
| Furnace Atomsphere | Nitrogen, Argon and other inert gas |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15°C/min (suggestion: ≤10°C) |
| Temperature Accuracy | +/-1°C |
| Heating Element | Molybdenum Disilicide (MoSi2) |
| Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 4KW |
| Outside Size | 550x540x820mm |
| Net Weight | 130 Kg |
Application of this atmosphere control 1200C furnace :
1. Gravimetric analysis;
2. Sintering or Roasting or Forging or calcining;
3. Quantitative analysis;
4. Heat treating or Preheating;
5. Quenching or Hardening or Austempering
6. Annealing or Tempering or Normalizing
7. Stress Relieving
8. Temperature measurement
Standard package included with atmosphere sintering muffle furnace:
| Thermal couple | 1 pc |
| Inlet/outlet,valves | 1 set |
| Flow meter | 1 pc |
| Vacuum gauge | 1 pc |
| Vacuum pump | 1 pc |
| Furnace door block | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
Our warranty for our furnace :
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Package
♥ . Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.
♥ . Shipping detailed:30 days after receiving your deposit.
Time of Delivery of vacuum atmosphere furnace:
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
