Product Details:
Payment & Shipping Terms:
|
| Name: | Electric Furnace | Effective Working Size: | 500x500x500mm |
|---|---|---|---|
| Max. Temperature: | 1700℃ | Operation Temperature: | ≤1600℃ |
| Temp Controller: | 50 Segements Programmable PID Auto Control | Furnace Structure: | Double Shells With Fan Cooling |
| Temp. Measuring: | B Type | Heating Rate: | ≤20℃ |
| Temp Accuracy: | ±1℃ | Condition: | New |
| High Light: | 125L Digital Muffle Oven,125L scientific muffle furnace,Alumina Plate Digital Muffle Oven |
||

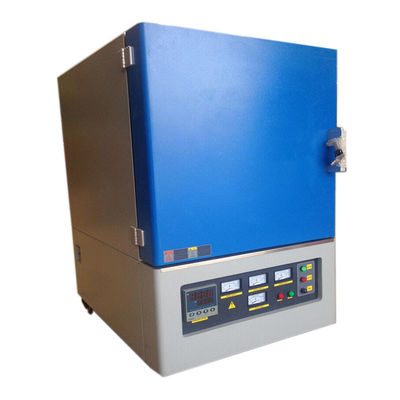

High Temperature Lab Electric Furnace Brief Introduction:
1. Lab electric chamber size :from 100*100*100mm to 600*600*600mm (1L- 216L)
2. Lab electric operation temperature:100℃ to 1600℃ .Max temperature : 1700℃
3. thermal insulation material: 1800 ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.
4. Lab electric heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .
5. Temperature measuring instrument :K type thermocouple for 1200℃ lab electric furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .
Lab Electric Furnace Application:
The laboratory muffle lab electric furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Technical Data of High Temperature Lab Electric Furnace :
| Style: | SP-1700B-125L lab electric furnace |
| Standard Working Temperature | 1600℃ ( continuous ) |
| Maximum Working Temperature | 1700℃( < 3 hrs) |
| Inside Chamber Size |
500X500X500mm |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15.C/ min (suggestion:<10.C) |
| Temperature Accuracy | ±1℃ |
| Temperature uniformity | ±1℃ |
| Insulation material | light weight alumina ceramic fiber board no pollution |
| Working Voltage | AC 380V 3Phase 60/50 Hz (or according to your requirement) |
| Furnace structure | Double shell with fan cooling |
| Heating Element | MoSi2 rod heating element |
| Thermocouple | B type |
| Max. Power | 36KW |
| Standard package included with the furnace: | |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Door block | 1pc |
| Stainless steel hook | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Heating element (extra) | 2pcs |
Stand model of SP laboratory high temperature muffle furnace:
| Model | Max. Temp. | Chamber size(WxHxD mm) | Working voltage and power |
| SP-1700B-1L | 1700℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1.5KW |
| SP-1700B-3.4L | 1700℃ | 150x150x150mm (6"x6"x6") | AC,1-phase,220V,3.5KW |
| SP-1700B-4.5L | 1700℃ | 150x150x200mm (6"x6"x8") | AC,1-phase,220V.4.5KW |
| SP-1700B-8L | 1700℃ | 200x200x200mm (8"x8"x8") | AC,1-phase,220V,6KW |
| SP-1700B-12L | 1700℃ | 200x200x300mm (8"x8"x12") | AC,1-phase,220V,8KW |
| SP-1700B-18.8L | 1700℃ | 250x250x300mm (10"x10"x12") | AC,3-phase,220V,11KW |
| SP-1700B-36L | 1700℃ | 300x300x400mm (12"x12"x16") | AC,3-phase,380V,16KW |
| SP-1700B-49L | 1700℃ | 350x350x400mm (14"x14"x16") | AC,3-phase,380V,21KW |
| SP-1700B-64L | 1700℃ | 400x400x400mm (16"x16"x16") | AC,3-phase,380V24KW |
| SP-1700B-125L | 1700℃ | 500x500x500mm (20"x20"x20") | AC,3-phase,380V,36KW |
| SP-1700B-216L | 1700℃ | 600x600x600mm (24"x24"x24") | AC,3-phase,380V,48KW |
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
