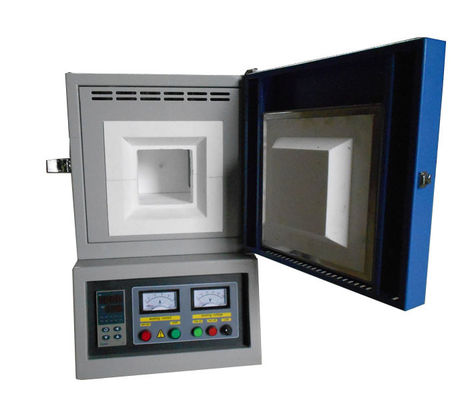

8L PID Control Desktop 1600℃ Electric Muffle Furnace MoSi2 Heating

8L PID Control Desktop 1600℃ Electric Muffle Furnace MoSi2 Heating
8L PID Control Desktop 1600℃ Electric Muffle Furnace MoSi2 Heating

Large Image :  8L PID Control Desktop 1600℃ Electric Muffle Furnace MoSi2 Heating

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700B-8L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 400sets/month
Detailed Product Description
Product: 1600℃ Electric Muffle Furnace Max. Temp: 1700℃
Operation Temperature: 1600℃ Rated Power: 6kw
Chamber Size: 200x200x200mm Voltage: AC 220V Plus/minus 10V/50Hz/60HZ
Type: Resistance Furnace Heating Rate: Max 20℃/min
High Light:

1600℃ Electric Muffle Furnace

,

8L Electric Muffle Furnace

,

1600℃ Metal Melting Furnace



          8L Desktop 1600℃  Electric Muffle Furnace MoSi2 Heating



SUPER electric muffle furnace is a programmable control powder sintering furnace can work at 1600C .



1)Electric muffle furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this furnace much more energy saving than the furnace use common fiber materials.



2)Electric muffle furnace with high quality silicon molybdenum rod as heating elements, high heating efficiency,greatly improving the service life.

3)Electric muffle furnace with assembling structure, through strict computation, durable to use, does not collapse; equipped with breathing holes, can reduce shrinkage of furnace chamber and prolong the service life.

4) Side open type furnace door, open the door power will be cut off automatically.

5) Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function.





8L PID Control Desktop 1600℃ Electric Muffle Furnace MoSi2 Heating 0



Metal melting electric muffle furnace application:

Electric muffle furnace is mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

1. Gravimetric analysis;

2. Sintering;

3. Quantitative analysis;

4. Heat treating;

5. Glass preparation;



Technical parameter of metal melting electric muffle furnace :



Items Specification
Product SP-1700B-8L high temperature lab electric muffle furnace
Useful chamber size 200*200*200mm(8L W * H* D)
Max Temp 1700℃ ( < 3 hrs)
Working Temp 100-1600℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element MoSi2 rod heating element
Furnace liner Light durable ceramic fiber plate
Rated Power: 6KW
Furnace shell Double shells with fan cooling
Temp. measurement By B type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55.C
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc





Stanard models of SUPER electric muffle furnace:

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1700B-1L 1700℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1700B-3.4L 1700℃ 150x150x150mm (6"x6"x6") AC,1-phase,220V,3.5KW
SP-1700B-4.5L 1700℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1700B-8L 1700℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1700B-12L 1700℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1700B-18.8L 1700℃ 250x250x300mm (10"x10"x12") AC,3-phase,220V,11KW
SP-1700B-36L 1700℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW
SP-1700B-49L 1700℃ 350x350x400mm (14"x14"x16") AC,3-phase,380V,21KW
SP-1700B-64L 1700℃ 400x400x400mm (16"x16"x16") AC,3-phase,380V24KW
SP-1700B-125L 1700℃ 500x500x500mm (20"x20"x20") AC,3-phase,380V,36KW
SP-1700B-216L 1700℃ 600x600x600mm (24"x24"x24") AC,3-phase,380V,48KW



Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that



Our service :

♥ Reply your inquiry and questions in 24 hours.

♥ Our professional technicians answer all your questions in English.

♥ Customized design is available.
