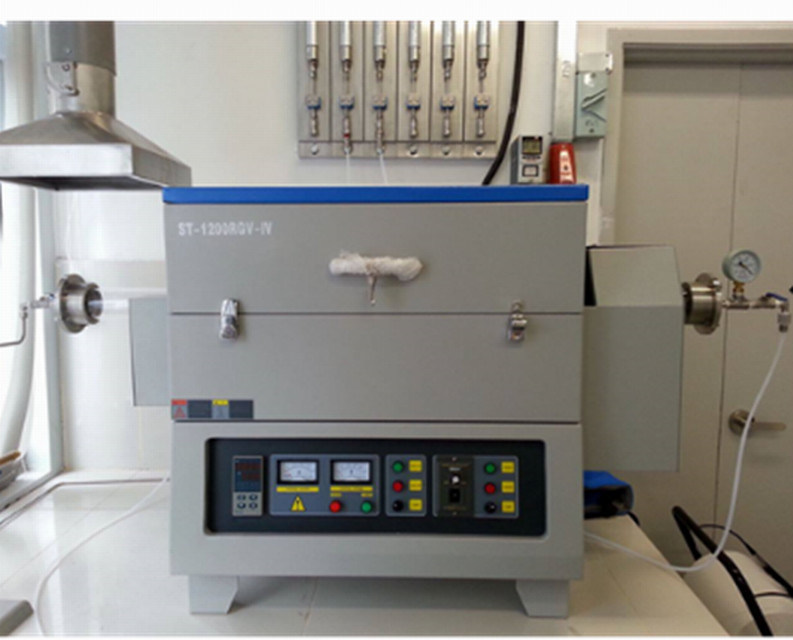

1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere

1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere
1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere

Large Image :  1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere

Product Details:

Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-12TB-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 15 -20 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300sets/month
Detailed Product Description
Name: Vacuum Tube Furnace Max. Temperature: 1200C
Operation Temperature: 1100.C Heating Element: Fe-Cr-Al-Mo Wire
Furnace Chamber: Split Type Thermocouple: K Type
Heating Rate: 20C/min Temperature Accuracy: +/-1C
Max. Vacuum: -0.1MPa Warranty: 1 Year Fro Free
High Light:

quartz tube furnace

,

high temperature laboratory furnace

      1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere



Introduction of vacuum tube furnace:

This tube furnace is divided into a single temperature zone and a multi-temperature zone. It has intelligent pressure protection, combustible gas detection, pressure equalization, intelligent air intake and other functions. Man-machine interface control, the accuracy is as high as 1.C. This high-temperature tube furnace is particularly suitable for annealing or sintering samples under atmospheric or vacuum conditions. The heating elements are evenly distributed above and below the furnace tube, and the temperature field is uniform. The furnace is widely used in semiconductors, nano materials, carbon fiber, graphene and other new materials and new technology fields.



Tube furnace structure:

1. chamber size :from OD40*300mm(L) to OD200*600mm

2.operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4.heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .

5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .



Technical parameter of vacuum tube furnace :

Product name and model SP-1200T-54 vacuum tube furnace
Heating tube size(OD×L) Dia80x300mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1200°C working time ( < 3 hours)
Working temperature 400-1100°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element resistance wire
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Rated power 4kw
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added





Delivery times :

♥For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥Other customized sizes the delivery time is from 15 days to 30 days according to different products request.



Our Warranty :



Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.



Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that





1200C Vacuum Tube Furnace -0.1MPa Quartz Tube Argon Nitrogen Atmosphere 0
