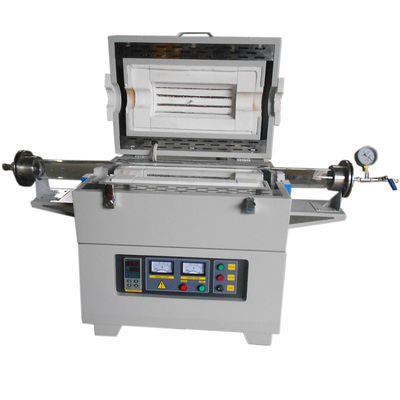

1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm

1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm
1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm

Large Image :  1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm

Product Details:

Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1200T-53

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300sets/month
Detailed Product Description
Goods: 1200C Electric Tube Furnace Max. Temperature: 1200C
Operation Temp: 1100C Heating Tube Size: OD50*300mm
Tube Material: Quartz Tube Heating Element: Resistance Wire
Insulation Material: Light Alumina Ceramic Fiber Board Vacuum Degree: -0.1MPa
Protect Gas: Nitrogen , Argon ... Application: Lab Testing
High Light:

quartz tube furnace

,

high temperature laboratory furnace

           1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere

1200C electric tube furnace spefication:



a) 1200C high efficiency electric tube furnace,heating element used resistance wire. When tube furnace heating, can ensure uniform temperature in the furnace and strong and durable.

b) Tube furnace chamber of the use of advanced light weight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40% . Heat preservation effect is good,temperature increase speed increased a times, save energy. Furnace service life by four times.

c) Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.

d) The 30 segments programmable intelligent digital temperature controller control temperature, high degree of automation, convenient operation.

e) It can be installed computer communication module and RS485 communication interface, to realize the remote control.

1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm 0



Technical parameter of electric tube furnace :

Product name and model 1200℃ high efficiency vacuum electric tube furnace
Heating tube size(OD×L) Dia50x300mm(heating length)
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1200°C working time ( < 3 hours)
Working temperature 400-1100°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element SiC rob
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Rated power 2KW
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added



Standard model of SP company electric tube furnace:

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1200T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-84 Φ80x400 mm(3.2"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-104 Φ100x400 mm(4.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-154 Φ150x400 mm(6.0"x16") TW-1A;1L/S;120W;110V/220V



Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that



Our service :

♥ Reply your inquiry and questions in 24 hours.

♥ Our professional technicians answer all your questions in English.

♥ Customized design is available.
