Product Details:
Payment & Shipping Terms:
|
| Goods: | Vacuum Tube Electric Furnace | Chamaber Size: | OD60*300mm(heating Length) |
|---|---|---|---|
| Max. Temperature: | 1200℃ | Working Temperature: | 1100℃ |
| Model: | SP-1200T-63 | Temperature Control: | 30 Segments Programmable PID Auto Control |
| Heating Element: | Fe-Cr-Al-Mo Wire | Furnace Chamber: | Split |
| Thermocouple: | K Type | Max. Vauum: | -0.1MPa |
| High Light: | vacuum tube furnace,quartz tube furnace |
||

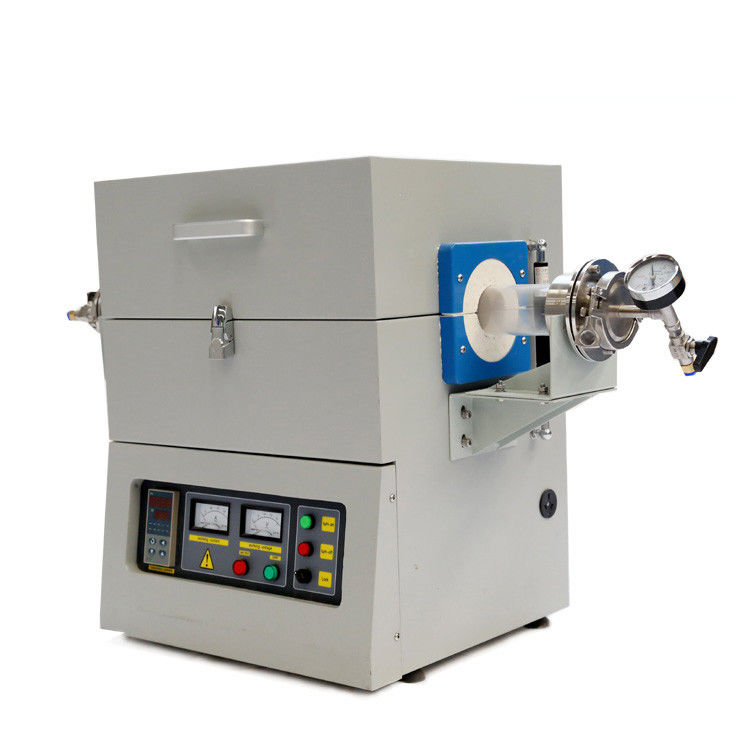

Brief Introduction of tube electric furnace
Laboratory tube electric furnace is a ideal laboratory equipment for sample annealing and high temperature test, is widely used for fast heating and sample annealing is vacuum or flowing atmosphere gas.Its tube is made of high purity quartz or alumina and sealed by the vacuum flange.
Main charactertics of tube electric furnace
1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.
2: Furnace Chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .
3: Double shell with fan cooling to make the shell temperature close to the room temperature.
4: Intergrated doule circruit to make the furnace more safe , stable and realiable.
5: Humanized design and advaned technics to make the furnace more beautiful and durable.
6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.
Technical parameter of 60*300mm electric tube furnace:
| Product name and model | SP-1200T-63 vacuum tube electric furnace |
| Heating tube size(OD×L) | Dia60x300mm |
| Chamber insulation materials | light weight alumina ceramic fiber plate |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
SUPER COMPANY advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
SUPER COMPANY service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
Other sizes of tube furnace can also be available .Welcome to send email to us if you are interest in our tube furnace .
The furnace back
