Product Details:
Payment & Shipping Terms:
|
Product: | Digital Atmosphere Tube Furnace | Max. Temp.: | 1200C |
---|---|---|---|
Operation Temperature: | 1100C | Tem. Control: | Intelligent 30-segment Programmable Aut Control |
Chamber Size: | OD100*400mm | Usage: | Heat Treatment Furnace |
Type: | Resistance Furnace | Furnace Structure: | Double Shells With Fan Cooling |
Thermocouple: | K Type | Temp. Accuracy: | ±1℃ |
Highlight: | vacuum tube furnace,high temperature laboratory furnace |

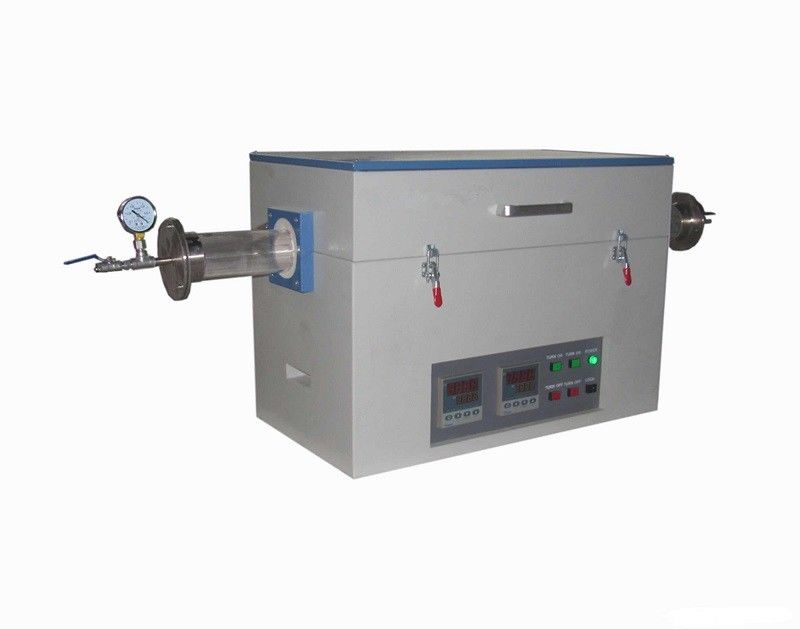

Atmosphere Tube Furnace Introduction:
SP series vacuum tube furnace use high pure alumina or quartz tube as furnace tube. Working temperature is from 800°C to 1600°C. Precise and advanced auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform , VTF tube furnace are widely used in the labs of university and Research Institutions, also used in factory for production.
Atmosphere tube furnace stucture:
1. chamber size :from OD40*300mm(L) to OD200*600mm
2. operation temperature:100C to 1600.C .Max temperature : 1700.C
3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.
4. heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .
5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .
Main technical parameter of 100*400mm tube furnace :
Product name and model | SP-1200T-104 vacuum tube furnace |
Heating tube size(OD×L) | Dia50x400mm |
Chamber insulation materials | light weight aluminum oxide fiber ceramic |
Maximum temperature | 1200°C working time ( < 3 hours) |
Working temperature | 400-1100°C (adjustable, for long time ) |
Temperature control | Intelligent 30 segments programmable and PID auto control |
Heating rate | 1-15℃/min (adjustable) |
Temperature accuracy | ±1℃ |
Thermocouple | K type |
Heating element | resistance wire |
Ultimate vacuum | -0.1Mpa |
Protect gas | Argon ,Nigroge.. inert gas |
Furnace shell | Double shell with fan cooling |
Temperature display mode | Four Figure Liquid Crystal Display |
Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Stanard model of SP atmosphere tube furnace:
Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
SP-1200T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
SP-1200T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-84 | Φ80x400 mm(3.2"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-104 | Φ100x500 mm(4.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
SP-1200T-154 | Φ150x600 mm(6.0"x24") | TW-1A;1L/S;120W;110V/220V |
Special requirement is also available .Welcome to send email to us .
