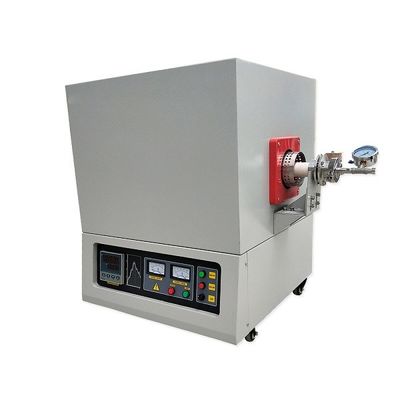

Digital 1400C High Temperature Tube Furnace 30 Segment Programmable Auto Control

Digital 1400C High Temperature Tube Furnace 30 Segment Programmable Auto Control
Digital 1400C High Temperature Tube Furnace 30 Segment Programmable Auto Control

Large Image :  Digital 1400C High Temperature Tube Furnace 30 Segment Programmable Auto Control

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1400T-84
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood cse
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, D/P
Supply Ability: 400 sets/month
Detailed Product Description
Goods: Digital Atmosphere Tube Furnace Max. Temp.: 1400C
Operation Temperature: 1300℃ Tem. Control: Intelligent 30-segment Programmable Aut Control
Chamber Size: OD80*400mm Usage: Heat Treatment Furnace
Type: Resistance Furnace Furnace Structure: Double Shells With Fan Cooling
Thermocouple: S Type Temp. Accuracy: ±1℃
High Light:

quartz tube furnace

,

high temperature laboratory furnace

     1400C Digital Control Atmosphere Tube Furnace Electric Quartz Tube High Temperature

Atmosphere Tube Furnace Introduction:

SP series vacuum tube furnace use high pure alumina or quartz tube as furnace tube. Working temperature is from 800°C to 1600°C. Precise and advanced auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform , VTF tube furnace are widely used in the labs of university and Research Institutions, also used in factory for production.





Atmosphere tube furnace stucture:

1. chamber size :from OD40*300mm(L) to OD200*600mm

2. operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4. heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .

5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .



Main technical parameter of 100*400mm tube furnace :

Product name and model SP-1400T-84 vacuum tube furnace
Heating tube size(OD×L) Dia80x400mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1400°C working time ( < 3 hours)
Working temperature 400-1300°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple S type
Heating element SiC rod
Ultimate vacuum -0.1Mpa
Protect gas  Argon ,Nitrogen.. inert gas
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added



Stanard model of SP atmosphere tube furnace:



Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1400T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-84 Φ80x400 mm(3.2"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1400T-104 Φ100x400 mm(4.0"x16") TW-1A;1L/S;120W;110V/220V



Special requirement is also available .Welcome to send email to us .





Our Warranty :

 One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.



Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that
