Product Details:
Payment & Shipping Terms:
|
| Product: | Heat Ttreament Furnace | Furnace Chamber: | 200x200x200mm |
|---|---|---|---|
| Max. Temperature: | 1200℃ | Operation Temp: | 1100℃ |
| Heating Rate: | 20℃/min | Heating Element: | Fe-Cr-Al-Mo Wire |
| Furnace Insulation Material: | Light Alumina Ceramic Fiber Plate | Vacuum Level: | -0.1MPa |
| Temperature Accuracy: | ±1℃ | Application: | University Heat Treatment |
| High Light: | vacuum muffle furnace,nitrogen atmosphere furnace |
||
Laboratory heat treatment furnace :
1. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. Thermocouple installed for immediate use.
4. Temperature control unit can be separated from furnace , and make moving at easy.
5. Vent port installed on the top for gas flow. ( gas outlet)
6. Furnace chamber size can be customized;
7. Small volume, good working performance, nice outlook, less consumption and convenient to move;
8. The door can be designed to up and down type or slid type;

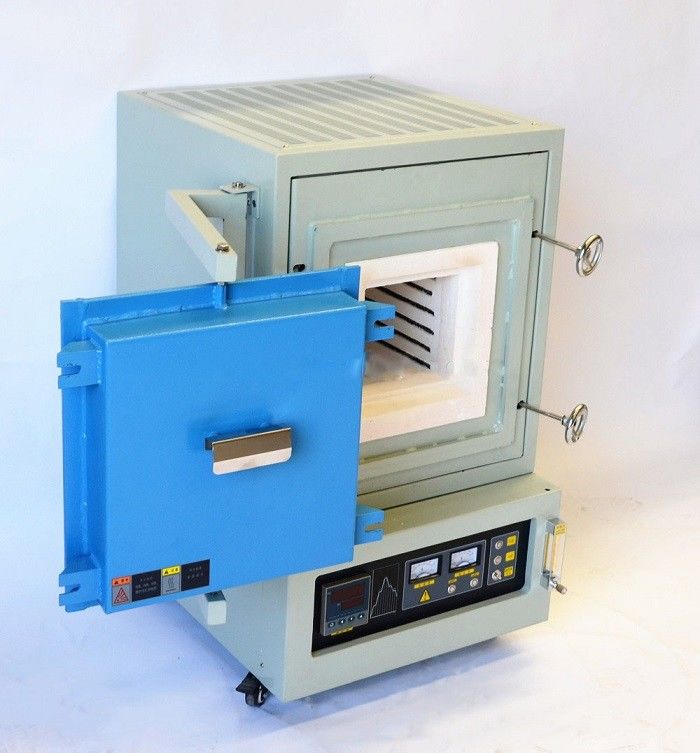

1200C lab electric heat treatment furnace structure:
SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .
1. Double shells with fan cooling .the furnace surface temperature is low
2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .
3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .
4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment
Technical parameter of 200x200x200mm chamber muffle furnace:
| Chamber Size | 200x200x200mm (8"x8"x8") |
| Working Temperature | 1200°C (continuous) |
| Maximum Temperature | 1100°C (for short time) |
| Furnace Atomsphere | Nitrogen, Argon and other inert gas |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15°C/min (suggestion: ≤10°C) |
| Temperature Accuracy | +/-1°C |
| Heating Element | Resistance wire |
| Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 4 KW |
Standard package included with atmosphere sintering muffle furnace:
| Thermal couple | 1 pc |
| Inlet/outlet,valves | 1 set |
| Flow meter | 1 pc |
| Vacuum gauge | 1 pc |
| Vacuum pump | 1 pc |
| Furnace door block | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
Standard models of SUPER 1200C laboratory heat treatment furnace
| Model | Chamber size(W*H*Dmm) | Max. Temperature |
| SP-1200BA-1L | 100x100x100mm(4"x4"x4") | 1200℃ |
| SP-1200BA-3.4L | 150x150x150mm(6"x6"x6") | 1200℃ |
| SP-1200BA-4.5L | 150x150x200mm(6"x6"x8") | 1200℃ |
| SP-1200BA-8L | 200x200x200mm(8"x8"x8") | 1200℃ |
| SP-1200BA-12L | 200x200x300mm(8"x8"x12") | 1200℃ |
| SP-1200BA-19L | 250x250x300mm(10"x10"x12") | 1200℃ |
| SP-1200BA-36L | 300x300x400mm(12"x12"x16") | 1200℃ |
| SP-1200BA-49L | 350x350x400mm(14"x14"x16") | 1200℃ |
| SP-1200BA-64L | 400x400x400mm(16”x16”x16”) | 1200℃ |
| SP-1200BA-125L | 500x500x500mm(20”x20”x20”) | 1200℃ |
| SP-1200BA-216L | 600x600x600mm(24"x24"x24") | 1200℃ |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
