12L 1200C Box Type Furnace , Ceramic Insulation Laboratory Vacuum Furnace Energy Saving

12L 1200C Box Type Furnace , Ceramic Insulation Laboratory Vacuum Furnace Energy Saving
12L 1200C Box Type Furnace , Ceramic Insulation Laboratory Vacuum Furnace Energy Saving
video play

Large Image :  12L 1200C Box Type Furnace , Ceramic Insulation Laboratory Vacuum Furnace Energy Saving

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1200BA-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 sets/ month
Detailed Product Description
Product: Box Electric Vacuum Furnace Furnace Chamber: 8"x8"x12"(customizable)
Max. Temperature: 1200℃ Operation Temp: 1100℃
Heating Rate: 20℃/min Furnace Insulation Material: Light Alumina Ceramic Fiber Plate
Vacuum Level: -0.1MPa Temperature Accuracy: ±1℃
Application: University Heat Treatment Temperature Controller: 30segments Programmable PID Control
High Light:

nitrogen atmosphere furnace


controlled atmosphere furnace

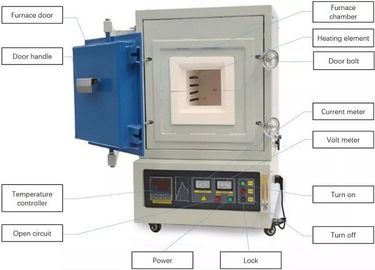

     12L 1200C Laboratory Box Electric Vacuum Furnace Ceramic Insulation Energy Saving

1200C lab box electric vacuum furnace introduction

1. We can offer you the lab electric argon atmosphere furnace from 1200C to 1800C.

2. The chamber size from 100*100*100mm to 600*600*600mm.The volume is from 1L to 216L.It can be customised .

3. We also can offer you OEM service .



1200C lab box electric vacuum furnace features

SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .

1. Double shells with fan cooling .the furnace surface temperature is low

2. 30 segments programmable and PID auto can make furnace more intelligent for people to use .

3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .

4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment



Application of  Laboratory Box Electric Vacuum Furnace :


1. Gravimetric analysis;


2. Sintering or Roasting or Forging or calcining;


3. Quantitative analysis;


4. Heat treating or Preheating;


5. Quenching or Hardening or Austempering


6. Annealing or Tempering or Normalizing

Technical parameter of 200x200x200mm box electric vacuum furnace:

Chamber Size 200x200x300mm (8"x8"x12")
Working Temperature 1200°C (continuous)
Maximum Temperature 1100°C (for short time)
Furnace Atomsphere Nitrogen, Argon and other inert gas
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15°C/min (suggestion: ≤10°C)
Temperature Accuracy +/-1°C
Heating Element Resistance wire
Working Voltage AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power 5 KW

Standard package included with box electric vacuum furnace:

Thermal couple 1 pc
Inlet/outlet,valves 1 set
Flow meter 1 pc
Vacuum gauge 1 pc
Vacuum pump 1 pc
Furnace door block 1 pc
Thermal gloves 1 pair
Operation manual 1 pc

Standard models of SUPER 1200C laboratory heat treatment furnace

Model Chamber size(W*H*Dmm) Max. Temperature
SP-1200BA-1L 100x100x100mm(4"x4"x4") 1200℃
SP-1200BA-3.4L 150x150x150mm(6"x6"x6") 1200℃
SP-1200BA-4.5L 150x150x200mm(6"x6"x8") 1200℃
SP-1200BA-8L 200x200x200mm(8"x8"x8") 1200℃
SP-1200BA-12L 200x200x300mm(8"x8"x12") 1200℃
SP-1200BA-19L 250x250x300mm(10"x10"x12") 1200℃
SP-1200BA-36L 300x300x400mm(12"x12"x16") 1200℃
SP-1200BA-49L 350x350x400mm(14"x14"x16") 1200℃
SP-1200BA-64L 400x400x400mm(16”x16”x16”) 1200℃
SP-1200BA-125L 500x500x500mm(20”x20”x20”) 1200℃
SP-1200BA-216L 600x600x600mm(24"x24"x24") 1200℃


Our product warranty: one year for free

Our products are warranted to be free from defects in materials or workmanship for one year from

the date of purchase. Within this period, Across International will, at its sole options, replace any

components that fail in normal use. Such replacement will be made at no charge to the customer

for parts, provided that the customer shall be responsible for any transportation cost. This warranty

does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration

or repairs.

Any special requirement, please contact with us by email, we will reply you within 24 hours.
