Mini Box Vacuum Atmosphere Furnace MoSi2 Heating Nitrogen Atmosphere Protect Reaction

Mini Box Vacuum Atmosphere Furnace MoSi2 Heating Nitrogen Atmosphere Protect Reaction
Mini Box Vacuum Atmosphere Furnace MoSi2 Heating Nitrogen Atmosphere Protect Reaction

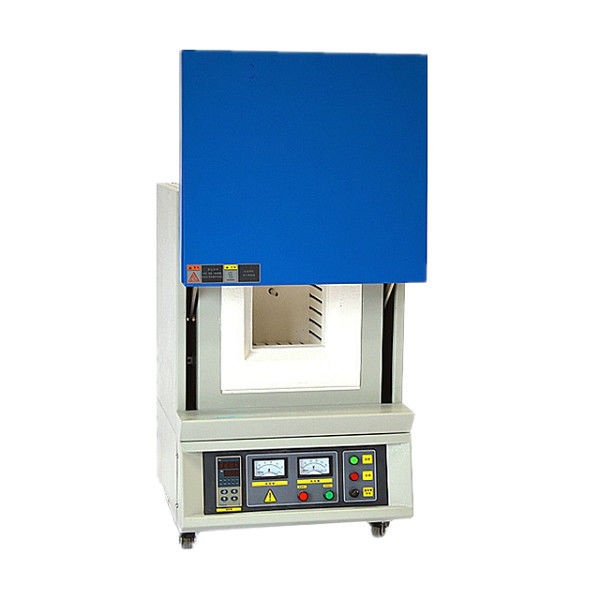

Large Image :  Mini Box Vacuum Atmosphere Furnace MoSi2 Heating Nitrogen Atmosphere Protect Reaction

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700BA-1L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400sets /month
Detailed Product Description
Name: Mini Electric Box Furnace Max. Temperature: 1700℃
Operation Temperature: 1600℃ Chamber Size: 100x100x100mm
Heating Element: MoSi2 Rod Vacuum Level: -0.1MPa
Temperature Accuracy: ±1℃ Temperature Measure: By B Type Thermocouple
Warranty: 12 Months Insulation Material: High Purity Alumina Ceramic Fiber Plate
High Light:

vacuum muffle furnace

,

nitrogen atmosphere furnace

    1700C MoSi2 Heating Mini Electric Box Furnace Nitrogen Atmosphere Protect Reaction



Brief Introduction of vacuum atmosphere furnace:

SP high temperature vacuum furnace is widely used in denture processing industry, scientific research institutes, as well as high temperature sintering of power metallurgy industry, annealing, zirconia sintering, ect.. high temperature heat treatment processing.





The supply of technical information together with electric box furnace:

1. Furnace operation manual

2. The maintenance solution of the common problems .

3. Electrical control schematic drawing



Technical support and after sale service :

1. Prompt technical consulation and support will be offered .

2. Provide consumable parts with favorable price

3. A whole year warranty and lifetime maintenance .

Technical parameter of 100x100x100mm vacuum atmosphere furnace :

Product Name Vacuum atmosphere chamber furnace
Model SP-1700BA-1L
Max Tempearture 1700℃(<3 Hours)
Working Tempearature 1600℃(Continuous)
Max Vacuum -0.1MPa
Inner chamber Size 100*100*100mm or customizatable
Furnace structure Double Shells with fan cooling
Temperature Controller 50 Segment programmable and PID auto control
Temperature Accuracy +/-1 °c
Heating Elements MoSi2 heating element
Heating Rate 20°c/Minutes(Suggestion<15°c)
Thermocouple k type
Rated Power 2KW
Rater Voltage AC 380V (50/60hz)



Stanard models of SUPER company 1700C atmosphere electric box furnace :

Chamber Size 1200C 1400C 1700C
100x100x100mm(4”x4”x4”) SP-1200BA-1L SP-1400BA-1L SP-1700BA-1L
150x150x150mm(6”x6”x6”) SP-1200BA-3.4L SP-1400BA-3.4L SP-1700BA-3.4L
150x150x200mm(6”x6”x8”) SP-1200BA-4.5L SP-1400BA-4.5L SP-1700BA-4.5L
200x200x200mm(8”x8”x8”) SP-1200BA-8L SP-1400BA-8L SP-1700BA-8L
200x200x300mm(8”x8”x12”) SP-1200BA-12L SP-1400BA-12L SP-1700BA-12L
250x250x300mm(10”x10”x12”) SP-1200BA-19L SP-1400BA-19L SP-1700BA-19L
300x300x400mm(12”x12”x16”) SP-1200BA-36L SP-1400BA-36L SP-1700BA-36L
350x350x400mm(14”x14”x16”) SP-1200BA-49L SP-1400BA-49L SP-1700BA-49L
400x400x400mm(16”x16”x16”) SP-1200BA-64L SP-1400BA-64L SP-1700BA-64L
500x500x500mm(20”x20”x20”) SP-1200BA-125L SP-1400BA-125L SP-1700BA-125L
600x600x600mm(24”x24”x24”) SP-1200BA-216L SP-1400BA-216L SP-1700BA-216L



Special requirement for this furnace is also available .





Features of SUPER vacuum electric box furnace



1700C Atmosphere sintering muffle furnace Atmosphere sintering muffle furnace have below outstanding feature:

1: Better leak tightness.

2: Better heating preservation,

3: Atmosphere can be controlled.

4: Safety and explosion provention.

5: Precise temperature control.

6: Max Vacuum can up to -0.1Mpa



SUPER COMPANY Services



1. One year free warranty.

2. All machines are debugged before shipment.

3. Lifetime technical support and service.

4. 24 hours on line or phone or by email technical support.

5. We offer detailed machine manual and software manual.

6. Our factory make a vivid training CD.

7. Life-long free maintenance.

8. Free training in our factory.

Welcome to visit our factory, learn machine face to face.
