Small Nitrogen Atmosphere Furnace , 150 X 150 X 150mm Alumina Ceramic Heating Chamber

China Henan Super Machinery Equipment Co.,Ltd certification
China Henan Super Machinery Equipment Co.,Ltd certification
It's good cooperation with the Super Machinery , we hope keep long business.

—— David Smith

The high temperature tube furnace received, the outer packaging is very strong, and there are a lot of accessories. Thank you for your patience to explain the furnace before buying.

—— Simon Liu

I'm Online Chat Now

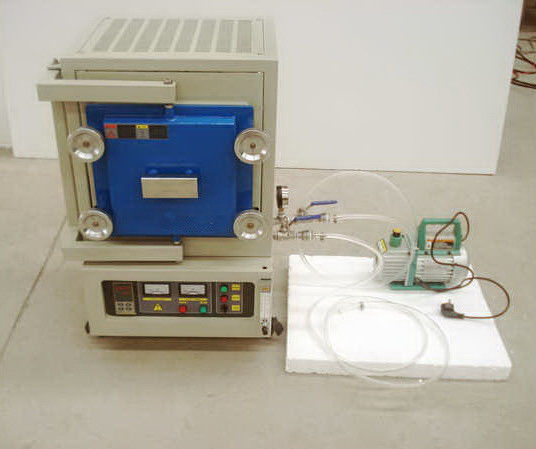

Small Nitrogen Atmosphere Furnace , 150 X 150 X 150mm Alumina Ceramic Heating Chamber

Small Nitrogen Atmosphere Furnace , 150 X 150 X 150mm Alumina Ceramic Heating Chamber
Small Nitrogen Atmosphere Furnace , 150 X 150 X 150mm Alumina Ceramic Heating Chamber
video play

Large Image :  Small Nitrogen Atmosphere Furnace , 150 X 150 X 150mm Alumina Ceramic Heating Chamber

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700BA-4.5L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: export wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detailed Product Description
Product: Small Atmosphere Lab Furnace Usage: Heat Treatment Furnace
Type: Lab Or Industry Test Or Sintering Operation Temp.: 1600℃
Chamber Size: 150*150*200mm Rated Powrer: 4.5KW
Heating Rate: 15℃-20℃/min Temp. Accuracy: ±1℃
Furnace Structure: Double Shells With Fan Cooling Temp Uniformity: ±1℃
High Light:

vacuum muffle furnace


controlled atmosphere furnace

   1700C Nitrogen Small Atmosphere Lab Furnace 150X150X150mm Alumina Ceramic Chamber

Atmosphere Lab Furnace Application:

This series of muffle furnaces are cyclical operation, for laboratory, industrial and mining enterprises, dental units, colleges and universities for the sintering of metal materials and ceramic materials, heat treatment of some single crystals, high temperature re-sintering shrinkage test of refractory materials and general small The steel is heated during quenching, annealing, tempering, etc. during heat treatment.



Resistance wire atmosphere furnace features:

1. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.

2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.

3. Thermocouple installed for immediate use.

4. Temperature control unit can be separated from furnace , and make moving at easy.

5. Furnace chamber size can be customized;

6. Small volume, good working performance, nice outlook, less consumption and convenient to move;

7. The door can be designed to up and down type or slid type;


The technical data of 150*150*200mm 1700C Atmosphere Lab Furnace:

Name and model 1700C  4.5L Atmosphere Lab Furnace
Hearth Model side open type
Display Model Highlight LED Display
Maximum Temperature 1700℃
Working Temperature ≤1600℃
Heating rate Suggest:10-15℃/Min Max:20℃/Min
Heating zones Single heating zone
Hearth dimensions 150mm×150mm×200mm
Hearth volume 4.5L
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Vacuum level  -0.1MPa
Atmosphere  Nitrogen,Argon and other inert gas
Temperature curve 30 segments programmable and PID auto control
over heat alarm Have
overcurrent protection Have
Thermocouple Failure Protection Have
Temperature measure element B-type thermocouple
Heating Element High quality
Hearth Material High purity alumina fiber
Power Supply 110-220V 50Hz/60Hz
Certification CE certification
After-sales service 12 month warranty, durable maintaince and repair support
Packing plywooden case
Accessories Power line, protective glove,user manual,



♥ . Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.

♥ . Shipping detailed:30 days after receiving your deposit.


Time of delivery of vacuum atmosphere furnace:

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.


Our Warranty :

Warranty: One year limited warranty with lifetime support, excluding heating element damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.


Our Advantages :

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that


Our Service:

♥ Reply your inquiry and questions in 24 hours.

♥ Our professional technicians answer all your questions in English.

♥ Customized design is available.
