Product Details:
Payment & Shipping Terms:
|
| Name: | Vacuum Atmosphere Muffle Furnace | Max. Temperature: | 1700℃ |
|---|---|---|---|
| Operation Temperature: | 1600℃ | Chamber Size: | 150x150x150mm |
| Heating Element: | MoSi2 Rod | Vacuum Level: | -0.1MPa |
| Temperature Accuracy: | ±1℃ | Temp Controller: | 30 Segments Programmable And PID Auto Control |
| Temperature Measure: | By B Type Thermocouple | Vacuum Pump: | Supply |
| High Light: | vacuum muffle furnace,controlled atmosphere furnace |
||

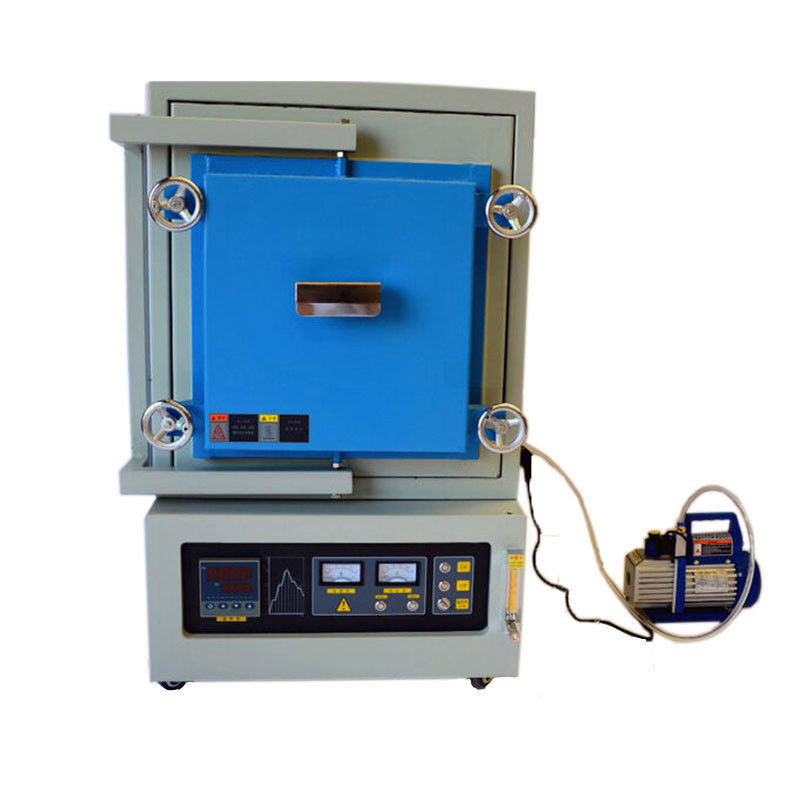

1700C vacuum atmosphere muffle furnace features:
SP series atmosphere muffle furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .
1. Double shells with fan cooling .the furnace surface temperature is low
2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .
3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .
4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment
The supply of technical information together with furnace:
1. Furnace operation manual
2. The maintenance solution of the common problems .
3. Electrical control schematic drawing
Technical support and after sale service :
1. Prompt technical consulation and support will be offered .
2. Provide consumable parts with favorable price
3. A whole year warranty and lifetime maintenance .
Technical parameter of 100x100x100mm vacuum atmosphere furnace :
| Product Name | 1700C Vacuum atmosphere muffle furnace |
| Model | SP-1400BA-1L |
| Max Tempearture | 1400℃(<3 Hours) |
| Working Tempearature | 1300℃(Continuous) |
| Max Vacuum | -0.1MPa |
| Inner chamber Size | 100*100*1000mm or customizatable |
| Furnace structure | Double Shells with fan cooling |
| Temperature Controller | 50 Segment programmable and PID auto control |
| Temperature Accuracy | +/-1 °c |
| Heating Elements | MoSi2 rod |
| Heating Rate | 20°c/Minutes(Suggestion<15°c) |
| Thermocouple | B type |
| Rated Power | 6KW |
| Rater Voltage | AC 380V (50/60hz) |
Stanard models of SUPER company 1700C atmosphere muffle furnace :
| Model | Chamber size(W*H*Dmm) | Max. Temperature |
| SP-1700BA-1L | 100x100x100mm(4"x4"x4") | 1700℃ |
| SP-1700BA-3.4L | 150x150x150mm(6"x6"x6") | 1700℃ |
| SP-1700BA-4.5L | 150x150x200mm(6"x6"x8") | 1700℃ |
| SP-1700BA-8L | 200x200x200mm(8"x8"x8") | 1700℃ |
| SP-1700BA-12L | 200x200x300mm(8"x8"x12") | 1700℃ |
| SP-1700BA-19L | 250x250x300mm(10"x10"x12") | 1700℃ |
| SP-1700BA-36L | 300x300x400mm(12"x12"x16") | 1700℃ |
| SP-1700BA-49L | 350x350x400mm(14"x14"x16") | 1700℃ |
| SP-1700BA-64L | 400x400x400mm(16”x16”x16”) | 1700℃ |
| SP-1700BA-125L | 500x500x500mm(20”x20”x20”) | 1700℃ |
| SP-1700BA-216L | 600x600x600mm(24"x24"x24") | 1700℃ |
Special requirement for this furnace is also available .
SUPER COMPANY Services
1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
6. Our factory make a vivid training CD.
7. Life-long free maintenance.
8. Free training in our factory.
Welcome to visit our factory, learn machine face to face.
