1700 Degree Celsius Box Vacuum Atmosphere Furnace 15 ℃ / Min Heating Rate

1700 Degree Celsius Box Vacuum Atmosphere Furnace 15 ℃ / Min Heating Rate
1700 Degree Celsius Box Vacuum Atmosphere Furnace 15 ℃ / Min Heating Rate
video play

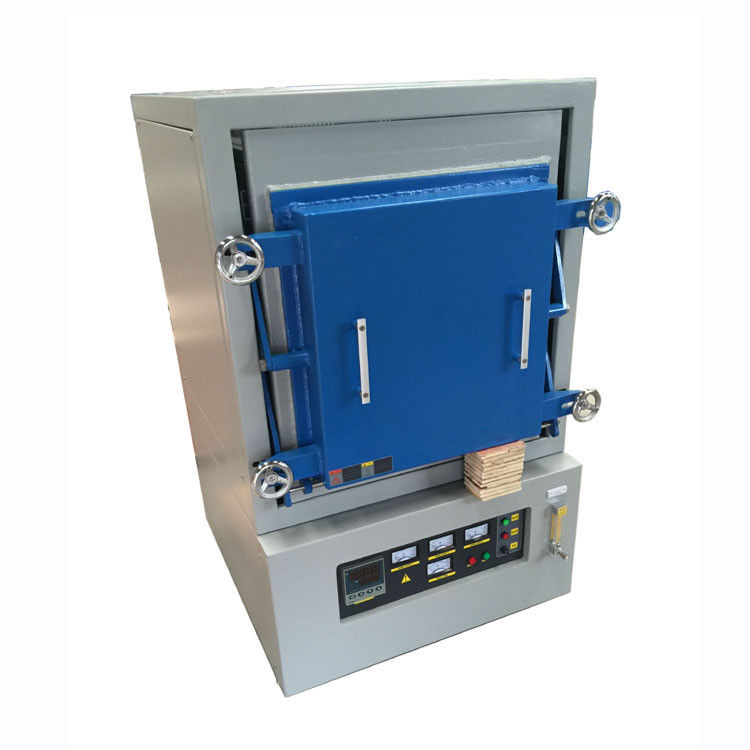

Large Image :  1700 Degree Celsius Box Vacuum Atmosphere Furnace 15 ℃ / Min Heating Rate

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700BA-36L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 sets/ month
Detailed Product Description
Product: Box Electric Vacuum Furnace Furnace Chamber: 12"x12"x16"(customizable)
Max. Temperature: 1700℃ Operation Temp: 1600℃
Heating Rate: 15℃/min Furnace Insulation Material: Light Alumina Ceramic Fiber Plate
Vacuum Level: -0.1MPa Application: University Heat Treatment
Temperature Controller: 30segments Programmable PID Control Rated Power: 16KW
High Light:

nitrogen atmosphere furnace


controlled atmosphere furnace

    1700Degree Celsius High Temperature Box Electric Vacuum Furnace Ceramic Insulation

1700C lab box electric vacuum furnace introduction

1. We can offer you the lab electric argon atmosphere furnace from 1200C to 1800C.

2. The chamber size from 100*100*100mm to 600*600*600mm.The volume is from 1L to 216L.It can be customised .

3. We also can offer you OEM service .




1700C lab box electric vacuum furnace features

SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .

1. Double shells with fan cooling .the furnace surface temperature is low

2. 30 segments programmable and PID auto can make furnace more intelligent for people to use .

3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .

4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment

Technical parameter of 300x300x400mm box electric vacuum furnace:

Product name  Box Electric Vacuum Furnace
Chamber Size 300x300x400mm (12"x12"x16")
Working Temperature 1700°C (continuous)
Maximum Temperature 1600°C (for short time)
Furnace Atomsphere Nitrogen, Argon and other inert gas
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15°C/min (suggestion: ≤10°C)
Temperature Accuracy +/-1°C
Heating Element MoSi2 heating element
Working Voltage AC 380V, 3-Phase, 60/50 Hz (or according to your requirement)
Max. Power 16 KW

Standard package included with box electric vacuum furnace:

Thermal couple 1 pc
Inlet/outlet,valves 1 set
Flow meter 1 pc
Vacuum gauge 1 pc
Vacuum pump 1 pc
Furnace door block 1 pc
Thermal gloves 1 pair
Extra heating element  2pcs
Operation manual 1 pc

Standard models of SUPER 1700C laboratory box electric vacuum furnace

Model Chamber size(W*H*Dmm) Max. Temperature
SP-1700BA-1L 100x100x100mm(4"x4"x4") 1700℃
SP-1700BA-3.4L 150x150x150mm(6"x6"x6") 1700℃
SP-1700BA-4.5L 150x150x200mm(6"x6"x8") 1700℃
SP-1700BA-8L 200x200x200mm(8"x8"x8") 1700℃
SP-1700BA-12L 200x200x300mm(8"x8"x12") 1700℃
SP-1700BA-19L 250x250x300mm(10"x10"x12") 1700℃
SP-1700BA-36L 300x300x400mm(12"x12"x16") 1700℃
SP-1700BA-49L 350x350x400mm(14"x14"x16") 1700℃
SP-1700BA-64L 400x400x400mm(16”x16”x16”) 1700℃
SP-1700BA-125L 500x500x500mm(20”x20”x20”) 1700℃
