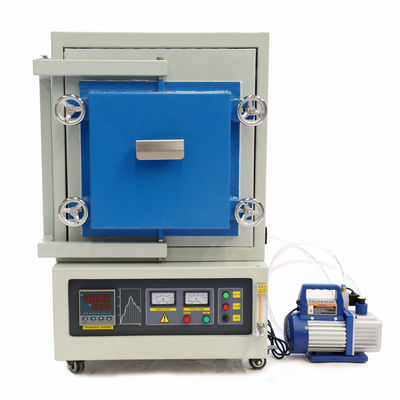

64L 1700C Vacuum Atmosphere Furnace Argon Atmosphere Chamber Ceramic Lining

64L 1700C Vacuum Atmosphere Furnace Argon Atmosphere Chamber Ceramic Lining
64L 1700C Vacuum Atmosphere Furnace Argon Atmosphere Chamber Ceramic Lining
video play

Large Image :  64L 1700C Vacuum Atmosphere Furnace Argon Atmosphere Chamber Ceramic Lining

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700BA-64L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400sets /month
Detailed Product Description
Goods: Chamber Muffle Furnace Operation Temperature: 1600℃
Chamber Size: 400x400x400mm(16"x16"x16") Heater: MoSi2 Rod
Vacuum Level: -0.1MPa Temperature Accuracy: ±1℃
Temp Controller: 30 Segments Programmable And PID Auto Control Temperature Measure: By B Type Thermocouple
Warranty: 12 Months Vacuum Pump: Supply
High Light:

vacuum muffle furnace

,

controlled atmosphere furnace

   64L Argon Atmosphere Chamber Muffle Furnace Ceramic Lining 1700C High Temperature



Features of atmosphere chamber muffle furnace:

SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .

1. Double shells with fan cooling .the furnace surface temperature is low

2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .

3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .

4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment





The supply of technical information together with furnace:

1. Furnace operation manual

2. The maintenance solution of the common problems .

3. Electrical control schematic drawing



Technical support and after sale service :

1. Prompt technical consulation and support will be offered .

2. Provide consumable parts with favorable price

3. A whole year warranty and lifetime maintenance .



Technical parameter of 400x400x400mm atmosphere chamber muffle furnace :

Product Name  atmosphere chamber muffle furnace
Model SP-1700BA-64L
Max Tempearture 1700℃(<3 Hours)
Working Tempearature 1600℃(Continuous)
Max Vacuum -0.1MPa
Inner chamber Size 400*400*400mm or customizatable
Furnace structure Double Shells with fan cooling
Temperature Controller 50 Segment programmable and PID auto control
Temperature Accuracy +/-1 °c
Heating Elements MoSi2 rod
Heating Rate 15°c/Minutes(Suggestion<10°c)
Thermocouple k type
Rated Power 24KW
Rater Voltage AC 380V (50/60hz)





Stanard models of SUPER company 1700C atmosphere chamber muffle furnace :

Model Chamber size(W*H*Dmm) Max. Temperature
SP-1700BA-1L 100x100x100mm(4"x4"x4") 1700℃
SP-1700BA-3.4L 150x150x150mm(6"x6"x6") 1700℃
SP-1700BA-4.5L 150x150x200mm(6"x6"x8") 1700℃
SP-1700BA-8L 200x200x200mm(8"x8"x8") 1700℃
SP-1700BA-12L 200x200x300mm(8"x8"x12") 1700℃
SP-1700BA-19L 250x250x300mm(10"x10"x12") 1700℃
SP-1700BA-36L 300x300x400mm(12"x12"x16") 1700℃
SP-1700BA-49L 350x350x400mm(14"x14"x16") 1700℃
SP-1700BA-64L 400x400x400mm(16”x16”x16”) 1700℃
SP-1700BA-125L 500x500x500mm(20”x20”x20”) 1700℃

Special requirement for this furnace is also available .



Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.



Warranty: one year for free



Our products are warranted to be free from defects in materials or workmanship for one year fromthe date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer

for parts, provided that the customer shall be responsible for any transportation cost. This warrantydoes not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.



Any special requirement, please contact with us by email, we will reply you within 24 hours.
