Product Details:
Payment & Shipping Terms:
|
| Product Name: | Vacuum Atmosphere Furnace | Operation Temp: | 1600℃ |
|---|---|---|---|
| Chamber Size: | Customizable | Heater: | MoSi2 Rod |
| Vacuum Level: | -0.1MPa | Temp. Accuracy: | ±1℃ |
| Temp Controller: | 30 Segments Programmable And PID Auto Control | Warranty: | 12 Months |
| Furnace Shell: | Double Shells With Fan Cooling | Door Open: | Side Open |
| High Light: | vacuum muffle furnace,nitrogen atmosphere furnace |
||

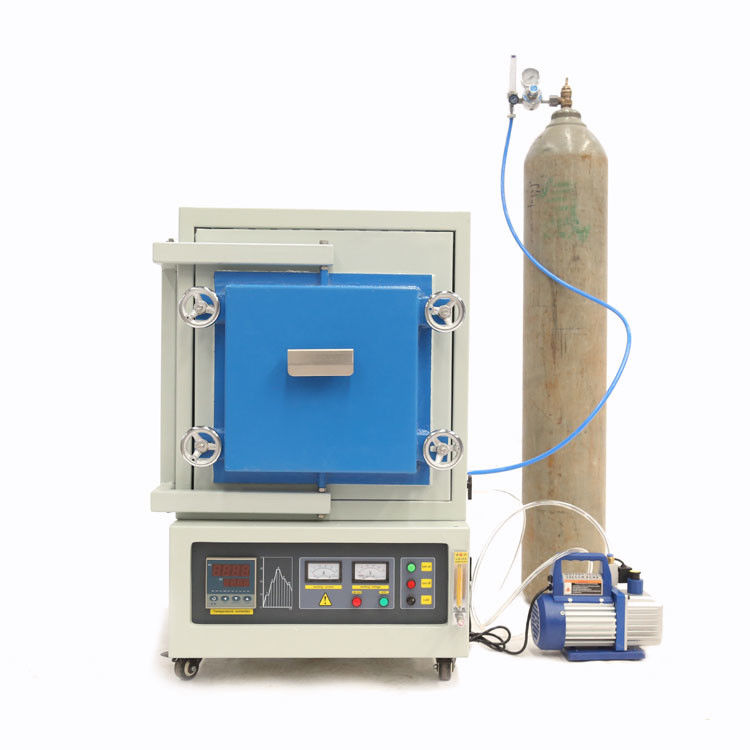

Vacuum atmosphere furnace features:
SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen ,argon and other inert gas .It is an ideal furnace for sintering ,reducting under inert -atmosphere in labs of university ,research institution and industrial company .
1. Double shells with fan cooling .the furnace surface temperature is low
2. 30 segments programmable and PID auto control.it can make furnace more intelligent for people to use .
3. High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .
4. It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment
Our electric vacuum atmosphere furnace advantage:
1. The furnace adopts all-ceramic fiber structure, light weight, small heat capacity, low loss of empty furnace, and energy saving of more than 70%.
2. The heating rate is fast and the speed can be adjusted. From room temperature to 1000 ° C, it usually takes 15 to 30 minutes.
3. The outer casing is made of high-quality cold-rolled steel plate, and the surface is spray-coated. The furnace door adopts a side-opening structure, which is flexible to open and close, and has a door-opening device to ensure safe use.
The control system adopts high-precision PID intelligent control instrument, which has the advantages of self-tuning, temperature error correction, timing, over-temperature alarm, good temperature control stability and high precision. It adopts non-contact control circuit and has the characteristics of no noise and high reliability.
Technical parameter of vacuum atmosphere furnace :
| Product Name | muffle chamber atmosphere furnace |
| Model | SP-1700BA |
| Max Tempearture | 1700℃(<3 Hours) |
| Working Tempearature | 1600℃(Continuous) |
| Max Vacuum | -0.1MPa |
| Inner chamber Size | customizatable |
| Furnace structure | Double Shells with fan cooling |
| Temperature Controller | 50 Segment programmable and PID auto control |
| Temperature Accuracy | +/-1 °c |
| Heating Elements | MoSi2 rod |
| Heating Rate | 15°c/Minutes(Suggestion<10°c) |
| Thermocouple | B type |
| Rated Power | according to chamber size |
| Rater Voltage | AC 380V (50/60hz) |
Stanard models of SUPER company atmosphere chamber muffle furnace :
| Chamber Size | 1200C | 1400C | 1700C |
| 100x100x100mm(4”x4”x4”) | SP-1200BA-1L | SP-1400BA-1L | SP-1700BA-1L |
| 150x150x150mm(6”x6”x6”) | SP-1200BA-3.4L | SP-1400BA-3.4L | SP-1700BA-3.4L |
| 150x150x200mm(6”x6”x8”) | SP-1200BA-4.5L | SP-1400BA-4.5L | SP-1700BA-4.5L |
| 200x200x200mm(8”x8”x8”) | SP-1200BA-8L | SP-1400BA-8L | SP-1700BA-8L |
| 200x200x300mm(8”x8”x12”) | SP-1200BA-12L | SP-1400BA-12L | SP-1700BA-12L |
| 250x250x300mm(10”x10”x12”) | SP-1200BA-19L | SP-1400BA-19L | SP-1700BA-19L |
| 300x300x400mm(12”x12”x16”) | SP-1200BA-36L | SP-1400BA-36L | SP-1700BA-36L |
| 350x350x400mm(14”x14”x16”) | SP-1200BA-49L | SP-1400BA-49L | SP-1700BA-49L |
| 400x400x400mm(16”x16”x16”) | SP-1200BA-64L | SP-1400BA-64L | SP-1700BA-64L |
| 500x500x500mm(20”x20”x20”) | SP-1200BA-125L | SP-1400BA-125L | SP-1700BA-125L |
| 600x600x600mm(24”x24”x24”) | SP-1200BA-216L | SP-1400BA-216L | SP-1700BA-216L |
Special requirement for this furnace is also available .We our company can supply atmosphere with different operation temperature , such as 1100C furnace,1400C furnace and 1700C furnace .
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Warranty: one year for free
Our products are warranted to be free from defects in materials or workmanship for one year fromthe date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer
for parts, provided that the customer shall be responsible for any transportation cost. This warrantydoes not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Any special requirement, please contact with us by email, we will reply you within 24 hours.
