MF Copper Induction Melting Furnace 150Kg Brass Melting Oven Energy Saving

MF Copper Induction Melting Furnace 150Kg Brass Melting Oven Energy Saving
MF Copper Induction Melting Furnace 150Kg Brass Melting Oven Energy Saving

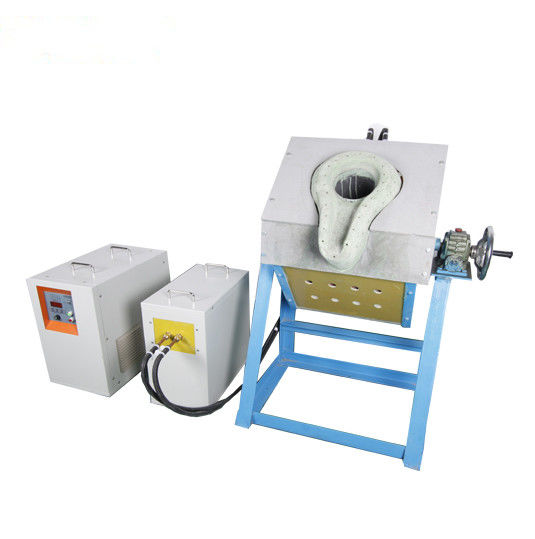

Large Image :  MF Copper Induction Melting Furnace 150Kg Brass Melting Oven Energy Saving

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: GWT-0.15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: by plywood case or by container
Delivery Time: 15-20 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300 sets/month
Detailed Product Description
Loading Capacity: 150kg Copper MF Rated Power: 100kw
Power Input Voltage: 380V Melting Frequency: 2500HZ
Melting Rate: 0.15T/hour Power Consumption: 0.6kwh/kg
Water Circulation: 3tons/h Induction Coil Votlage: 1000V
Rated Temperature: 1200℃ Full Set: Furnace Body , Capacitor Bank , Power Cabinet ,tilting System
High Light:

electric induction furnace

,

metal casting furnace

  MF Induction Copper Melting Furnace 150Kg Automatic Tilt Brass Melting Oven



INTRODUCTION  of Copper Melting Furnace:



Melting Copper Induction Furnace , mainly used in melting point is lower than 1600. C metal melting and purification, fusion metal alloy material.It is widely used in industry production for metallurgy, casting, alloy workpiece manufacturing etc.Also by the laboratory select and use for metallurgy process research, casting process research, alloy process research, etc.Because it does not produce by waste gas, waste water and noise etc.,does not polluting the environment, so it is replacing the traditional metal smelting melting equipment.





FEATURES AND PERFORMANCE of Copper Melting Furnace

1. Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.

2. Fast smelting with low production cost; low-pollution and environment-friendly ;

3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.

4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.

6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.





Technical Parameter of Copepr Melting Furnace



model

Lading

Capacity

(Kg)

Medium

Frequency

Power(KW)

Melting

frequency

(Hz)

Melting

rate

(Kg/h)

Power

consumption

(KWh/Kg)

Water

consumption

(tons/h)

Induction

coil

Voltage(V)

GWT-0.05 50 45 2500 50 0.7 1 750
GWT-0.15 150 100 2500 150 0.6 3 750
GWT-0.3 300 160 1000 280 0.56 4 750
GWT-0.5 500 250 1000 480 0.54 6 750
GWT-1 1000 500 1000 1000 0.52 9 2000
GWT-1.5 1500 750 500 1500 0.46 11 2000
GWT-2 2000 1000 500 2000 0.44 16 2000
GWT-3 3000 1500 500 3000 0.43 19 2000
GWT-5 5000 2500 300 5000 0.42 46 2800





Packing & Shipping



Small induction metal melting furnace will be packed by standard plywood case for exporting ;

Suppose your order is of big volume or 1pc furnace with large capacity, the products will be delivered by 20GP or 40GP container. Top open container is optional as well.



Warranty

  • Electric metal melting furnaces are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
