|Electric Heating Furnace
|300kg Brass /batch
induction heating furnace,
metal casting furnace

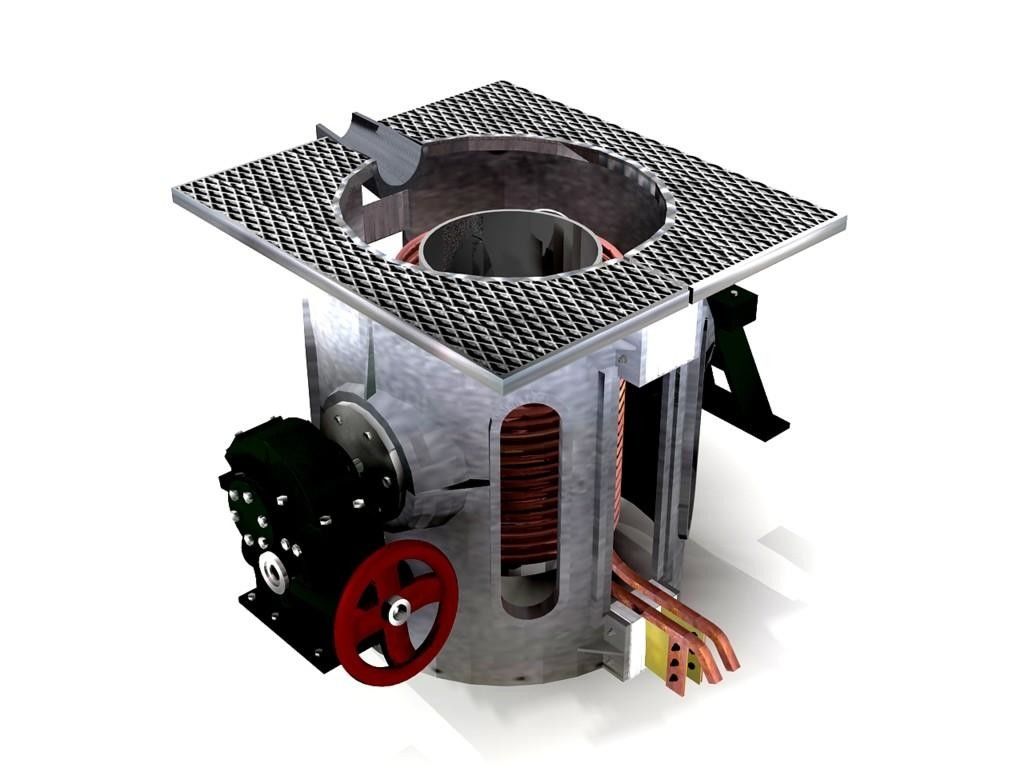

Copper melting electric heating furnace , mainly used in melting point is lower than 1200. C metal melting and purification, fusion metal alloy material.It is widely used in industry production for metallurgy, casting, alloy workpiece manufacturing etc.Also by the laboratory select and use for metallurgy process research, casting process research, alloy process research, etc.Because it does not produce by waste gas, waste water and noise etc.,does not polluting the environment, so it is replacing the traditional metal smelting melting equipment.
Environment and condition usage for induction melting furnace
1. Temperature should be at 2℃ to 35℃.
2. The relative humidity no more than 90%
3. Installation height not higher than 1000m
4. No conductive dust and corrosive gas in working place.
5. No explosion and violent vibration room around the place
6. The temperature of the the cooling water should no less than 10℃,not more than 30℃,hardness<8 degree,Ph<degrees,pressure>0.2Mpa.
7. Power supply must be AC 380V 3-phase 50Hz/60Hz,Voltage fluctuation 370-410Volts.
Advantages of electric heating furnace:
Technical parameter of 300kg copper melting furnace :
|Product name and model
|GWT-0.3 copper melting electric heating furnace
|Medium Frequency power
|Induction coil voltage
|Tilting furnace device
|Furnace shell structure
|Casting aluminum shell
Our service :
Quality control of copper melting furnace
To ensure that customers use our induction furnace with no worries, hereby we warrant:
1. We strictly select good material to ensure the reliable quality.
2. Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
Packing & Shipping
Small induction melting furnace will be packed by standard plywood case for exporting ;
Suppose your order is of big volume or 1pc furnace with large capacity, the products will be delivered by 20GP or 40GP container. Top open container is optional as well.
