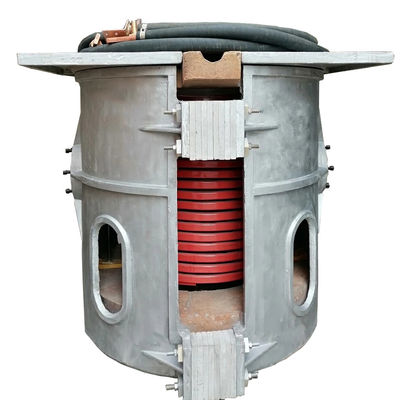

1200C Brass Melting Furnace , 1.5 Ton No Pollution Megatherm Induction Furnace

1200C Brass Melting Furnace , 1.5 Ton No Pollution Megatherm Induction Furnace
1200C Brass Melting Furnace , 1.5 Ton No Pollution Megatherm Induction Furnace 1200C Brass Melting Furnace , 1.5 Ton No Pollution Megatherm Induction Furnace

Large Image :  1200C Brass Melting Furnace , 1.5 Ton No Pollution Megatherm Induction Furnace

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: GW-1.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood caes or container
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Product: Induction Melting Electric Furnace Rated Capacity: 1.5ton Brass
Rated Temp.: 1200℃ Rated Power: 750kw
Input Voltage: 660V Melting Rate: 60mins/batch
Power Consumption: 460KWh/T Induction Coil Voltage: 2000V
Warranty: 12 Months Condition: New
High Light:

electric induction furnace

,

metal casting furnace

       1200C Induction Melting Electric Furnace 1.5ton Brass Melting No Pollution



A. GWT-1.5 Melting Electric Furnace feature

a). GWT-1.5 Melting Copper Induction Furnace ,adopt electromagnetic induction principle manufacture, the electromagnetic field to direct effects on melt material and heat generation.So, it's heat conversion efficiency is high, does not produce waste gas pollution environment.

b). At the same time, due to the furnace shell is made of metal materials for shielding electromagnetic field, so the environment around of furnace does not produce electromagnetic radiation pollution.

c). Medium frequency power supply adopts 12 pulse CPU centralized control, have stable and reliable working performance.At the same time, using SCR rectifier and SCR inverter (or IGBT inverter), circuit structure is simple,Maintenance is very convenient; Overload ability is very strong, good safety protection function;when work is low noise .

d). The machine has simple structure, installation and debugging is very convenient.Operating personnel do not require special training and study, just read give as a present the technical data together as to can be installation and debugging and use it.

e). Tilting furnace device uses electric gear speed reducer, the manufacturing cost is low, easy for installation and flexible rotation.






Induction melting electric furnace eight protection :



1. over voltage protection

2. over current protection

3. low voltage protection

4. lack phase protection

5. lack voltage protection

6. water pressure protection

7. water temperature protection



8. water flow protection.





SUPER COMPANY'S induction melting electric furnace advantages:

  • High melting efficiency, good power saving effect, compact structure and strong overload capacity;
  • The temperature around the furnace is low, the smoke dust is less, and the working environment is good;
  • The operation process is simple and the smelting operation is reliable;
  • Uniform metal composition;
  • The melting temperature rises quickly, the furnace temperature is easy to control, and the production efficiency is high;
  • The furnace has high utilization rate and convenient variety change
  •

Technical parameter of 1.5ton copper induction melting electric furnace :



Product name and model GWT-1.5 Medium Frequency Copper Melting Furnace
Highest temperature 1200°c
Temperature accuracy ±5°c
Load capacity 1.5T copper ,brass
Melting rate 60mins/batch at hot condition
Medium Frequency power 750KW
Melting frequency 500Hz
Power consumption 460KWh/t
Induction coil voltage 2000V
Circulation Water flow 20 tons/hour
Power supply AC,3-phase,208/380/400/415/440/465V,50/60Hz
Tilting furnace device Electric reducer
Furnace shell structure Casting aluminum shell
Transformer capacity  400KVA



Models of SUPER COMPANY Electric Furnace



model

Lading

Capacity

(Kg)

Medium

Frequency

Power(KW)

Melting

frequency

(Hz)

Melting

rate

(Kg/h)

Power

consumption

(KWh/Kg)

Water

consumption

(tons/h)

Induction

coil

Voltage(V)

GWT-0.05 50 45 2500 50 0.7 1 750
GWT-0.15 150 100 2500 150 0.6 3 750
GWT-0.3 300 160 1000 280 0.56 4 750
GWT-0.5 500 250 1000 480 0.54 6 750
GWT-1 1000 500 1000 1000 0.52 9 2000
GWT-1.5 1500 750 500 1500 0.46 11 2000
GWT-2 2000 1000 500 2000 0.44 16 2000
GWT-3 3000 1500 500 3000 0.43 19 2000
GWT-5 5000 2500 300 5000 0.42 46 2800



SUPER COMPANY is able to supply more models of metal melting furnace according to customers' requirement ,welcome to send us your requirement by email .
