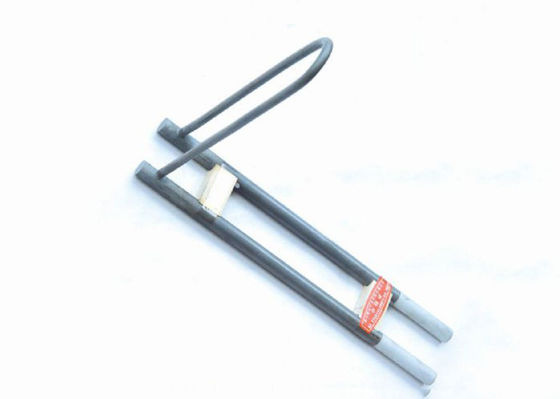

110 - 380V Oven Mosi2 Heating Elements Righ Angle Rod Industry Heat Treatment

110 - 380V Oven Mosi2 Heating Elements Righ Angle Rod Industry Heat Treatment
110 - 380V Oven Mosi2 Heating Elements Righ Angle Rod Industry Heat Treatment

Large Image :  110 - 380V Oven Mosi2 Heating Elements Righ Angle Rod Industry Heat Treatment

Product Details:
Place of Origin: Henan,China
Brand Name: SUPER
Certification: ISO 9001
Model Number: 1800type
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detailed Product Description
Product: Heating Element MoSi2 Application: High Temperture Furnace Heating Part
Voltage: 110-380V Power Source: Electric
Condition: New Power(w): 1w-10000w
Diameter: 4/9mm Length: 100-1000mm
Special Shape: Customziable Colour: Gray
High Light:

electric furnace heating element

,

molybdenum disilicide heating elements

       Oven Used Heating Element MoSi2 Righ Angle Rod Industry Heat Treatment



Heating element MoSi2 introduction :

1. Mosi2 heating element is a kind of resistance heating element with high temperature resistance, oxidation resistance and low aging based on molybdenum disilicide.When used in high temperature oxidation atmosphere, a layer of bright and compact quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of si-mo rod from oxidation, so the element of si-mo rod has unique high temperature oxidation resistance.



2. Under the oxidizing atmosphere, the maximum operating temperature is 1800, the resistance of the heating element of silicon molybdenum rod increases rapidly with the temperature increasing, and the resistance value is stable when the temperature is constant.Under normal conditions, the resistance of elements does not change with the service time, so the new and old elements can be mixed.



Mosi2 heating element consists of hot zone and cold zone, the welding point is beautiful ,smoothly, without bump





Heating Element MoSi2 Replacement

If there is a damaged part found in the process of operation, the first thing you should do is determine its location and get all the combination elements ready. After that, you should separate the wire the damaged element clipped to from the screw which is connected to the generatrix. Then remove the remained refractory wool and pull out the refractory stoppers. Insert the new combination elements into the furnace from its roof. Connect all the wires and get the refractory wool filled, and finally raise the temperature.



Heating element MoSi2 :

Item: Molybdenum silicide heating element Type: U, W
Max Tempearture: 1800C Working Tempearature: 1700C
Size: Accord to you requirement Application: Heat treatment furnace part
Order sample: d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm

Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm)

d = the diameter of hot zone

c = the diameter of cold zone

Le = the length of hot zone

Lu = the length of cold zone
Standard sizes: M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
  M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24



Packaging & Shipping of MoSi2 heater



Package: Package: Synthetic wooden case padded with foams



We also received OEM service; the package can be designed according to your requirements.



Shipping: By vessel or by plane from any Chinese port, Samples can be delivered by International express.



Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

d = the diameter of hot zone ?

c = the diameter of cold zone ?

Le = the length of hot zone ?

Lu = the length of cold zone ?

a=Shank spacing

g=junction length



How many pcs ?
