| Name: | Heat Treatment Carburizing Furnace | Model: | RQ3-25-9 |
|---|---|---|---|
| Rated Temp: | 950℃ | Rated Voltage: | 380/440V |
| Rated Power: | 25KW | Working Zone: | Dia.300*450mm |
| Function: | For Low Carbon Steel | Warranty: | 12 Months |
| Pipe Material: | Stainless Steel | Weight: | 1700kg |
| High Light: | vacuum carburizing furnace,resistance heating furnace |
||
Introduction of heat treatment carburizing furnace:

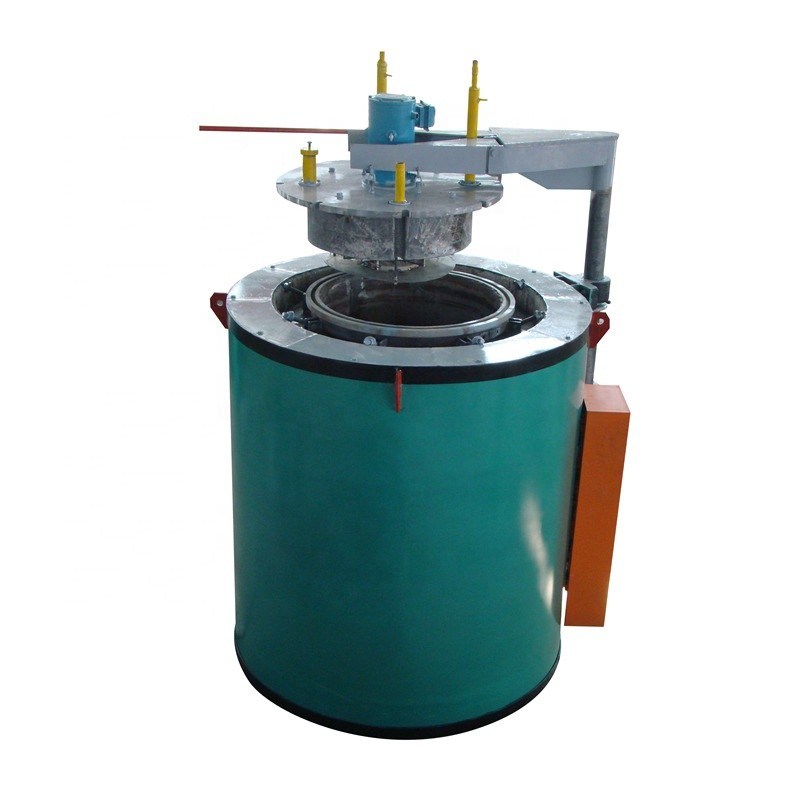

Pit type furnace is cycle type furnace, apply to the pole, long axial parts heat treatment. The Wells of the furnace body is cylindrical, by special crane installed vertically within the charging heating workpiece. Pit type furnace is usually placed below the ground plane in the shop, also have placed above the ground plane, or each half of the under ground plane.
Main Performance Index of carburizing furnace:
1.1 carbon potential uniformity: ≤±0.05%CP;
1.2 carbon potential stability: ≤±0.02%CP;
1.3 carbide uniformity grade: ≤±1 grade;
1.4 Effective case depth tolerance: ≤±0.1mm for case depth≤1mm; ±5% for case depth: ≥1mm; (same bath material);
1.5 carbon potential control method: oxygen probe and PID regulation;
Characteristics of gas carburizing furnace:
1) Rational structure, uniform furnace temperature, small upper & lower temperature difference in working zone, especially applicable for heating and heat treatment for long axial work-piece.
2) Adopt energy-saving furnace lining, fast temperature rise, low empty furnace consumption, save more than 20% of energy compare with old product.
3) The control system can be equipped with normal control instrument or instrument with micro-processor program control according to actual need.
4) When needed during process, protective atmosphere can be fed into the furnace to realize little-oxidizing heating.
5) Each product is installed with safety interlock and over-temperature device to provide reliable and safe operation and use.
Technical parameter of RQ3-25-9 carburizing furnace:
| Model | RQ3-25-9 |
| Loading capacity | 80KG per batch |
| Inner chamber size | Dia. 300*450mm |
| Effective utilization | 60% (there should be space between gears) |
| Rated power | 25KW |
| Rated voltage | 380/440V |
| Rated temperature | 950.C |
| Furnace shell | Steel plate |
| Furnace lining | Super light and energy saving refractory brick and insulation brick |
| Furnace pipe | Stainless steel |
| Lifting device for furnace lid | Hydraulic device with motor |
| Furnace motor | Sealing fan to make sure the uniformity of furnace temperature and gas |
| Heating element | Resistance wire |
| Power control cabinet | Supply |
|
Supply volume (L*W*H* mm) |
1590 X 1410 X 2230 mm |
Standard models of SUPER gas carburizing furnace:
| Name | Model |
Rated Power |
Rated Voltage |
Rated Temp. |
Effective Size |
Remarks |
|
Well- type Gas Carburizing Furnace |
RQ3-25-9 | 25 kw | 3P. 380 V | 950.C | Φ300*450mm |
Applicable for carburizing of steel parts, protective atmosphere quenching and other heat treatment |
| RQ3-35-9 | 35 kw | 3P. 380 V | 950.C | Φ300*600mm | ||
| RQ3-60-9 | 60 kw | 3P. 380 V | 950.C | Φ450*600mm | ||
| RQ3-75-9 | 75 kw | 3P. 380 V | 950.C | Φ450*900mm | ||
| RQ3-90-9 | 90 kw | 3P. 380 V | 950.C | Φ600*900mm | ||
| RQ3-105-9 | 105kw | 3P. 380 V | 950.C | Φ600*1200mm |
Special requriement is also avaialble .
