Payment & Shipping Terms:
|Operation Temperature:||1100℃||Temperature Control:||30 Segments Programmable PID Control|
|Temperature Mesasuring:||By K Type Thermocouple||Working Zone Size:||As Demands|
|Temperature Accuracy:||±1 ℃||Heating Element:||Resistance Wire|
|Max. Heating Rate:||15-20℃/min||Certification:||CE|
1200C Laboratory Muffle Furnace,
1200C scientific muffle furnace,
PID Control Laboratory Muffle Furnace

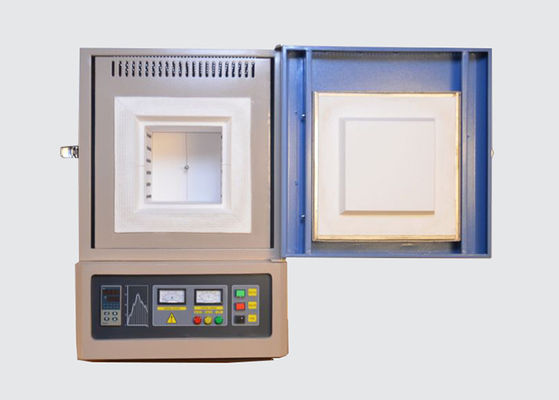

Description of 1200C lab muffle furnace:
Main usage of lab muffle furnace:
1. In chemical analysis
2. Physical decomposition and synthesis ,superhard materials (such as ceramic)
3. Metal heat treatment of sintering process research and other scientific experiments
4. Universities and colleges ,scientific research institutes
5. Rare and precious metal smelting and purification
Main technical of chamber lab muffle furnace :
|Product||SP-1200B-4.5L electric box lab muffle furnace|
|Useful chamber size||150*150*200mm(4.5L W * H* D)|
|Max Temp||1200℃ ( < 3 hrs)|
|Working Temp||100-1100℃ (adjustable, for long time )|
|Temp accuracy||±1 ℃|
|Temp. uniformity||±1 ℃|
|Heating rate||1-20℃/min (adjustable,advise less than 15℃/min)|
|Heating Element||Resistance wire|
|Furnace liner||Light durable ceramic fiber plate|
|Rated Power:||1.5 KW|
|Furnace shell||Double shells with fan cooling|
|Temp. measurement||By B type thermocouple|
|Temp. Control||30 segments programmable and PID auto control|
|Temperature display mode||Four Figure Liquid Crystal Display|
|Furnace surface temperature||≤55℃|
|Working Voltage||AC,1-phase ,220V ,50/ 60HZ|
|Optional part||Can be connected with computer if customer need|
|Freebies||1.oven glove 1 set ; 2. Pliers 1pc 3. extra MoSi2 rod 2pcs|
Delivery times :
♥ For some normal standard size lab muffle furnaces and components, we have in stock; So we can send out in3-5 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
4. Payment methods?
T/T, L/C, D/P and so on
5. Packing method?
Standard export wooden box packaging
6. Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
