Product Details:
Payment & Shipping Terms:
|
| Product: | Lab Electric Furnace | Max. Temp.: | 1200℃ |
|---|---|---|---|
| Working Temp.: | 1100℃ | Tube Size: | OD60*300mm (length)(customizable) |
| Temp. Measuring: | K Type | Temp Uniformity: | ±1℃ |
| Temp. Uniformtiy: | ±1℃ | Max. Vacuum: | -0.1MPa |
| Furnace Structure: | Double Shells | Certification: | CE |
| High Light: | vacuum tube furnace,quartz tube furnace |
||

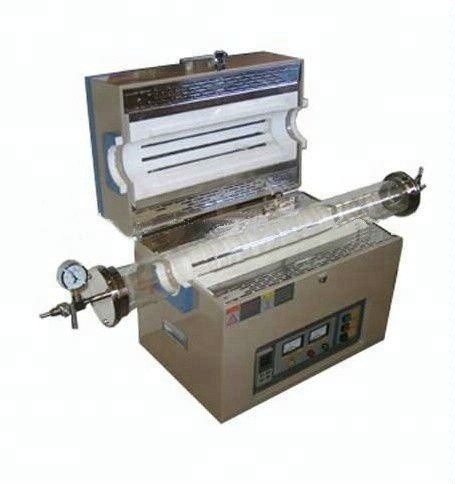

Lab Electric Furnace application:
This is a safety tube furnace with single temperature zone and multi-temperature zone. It has intelligent pressure protection function, combustible gas detection function, pressure equalization function, intelligent intake, 30 segments cloud data storage and other functions. Man-machine interface control with an accuracy of up to 1.C. This high temperature tube furnace is particularly suitable for annealing and sintering samples under atmospheric or vacuum conditions. The heating element is evenly distributed above and below the furnace tube, and the temperature field is uniform. The device is widely used in semiconductor, nanomaterials, carbon fiber, graphene and other new materials, new technology fields.
Lab Electric Furnace main charactertics:
1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.
2: Furnace Chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .
3: Double shell with fan cooling to make the shell temperature close to the room temperature.
4: Intergrated doule circruit to make the furnace more safe , stable and realiable.
5: Humanized design and advaned technics to make the furnace more beautiful and durable.
6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.
Main technical parameter of 1200C vacuum lab electric furnace:
| Product name and model | SP-1200T-63 vacuum tube furnace |
| Heating tube size(OD×L) | Dia60x300mm |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
SP-1200T vacuum tube furnace standard model
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1200T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1200T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-84 | Φ80x400 mm(3.2"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-104 | Φ100x400 mm(4.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-154 | Φ150x400 mm(6.0"x16") | TW-1A;1L/S;120W;110V/220V |
Delivery time :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty : One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
