Product Details:
Payment & Shipping Terms:
|
Product: | Vacuum Muffle Furnace | Furnace Chamber: | 300x300x400mm |
---|---|---|---|
Max. Temperature: | 1200℃ | Operation Temp: | 1100℃ |
Heating Rate: | 15℃/min | Heating Element: | Fe-Cr-Al-Mo Wire |
Furnace Insulation Material: | Light Alumina Ceramic Fiber Plate | Vacuum Level: | -0.1MPa |
Temperature Accuracy: | ±1℃ | Application: | University Heat Treatment |
Highlight: | vacuum muffle furnace,nitrogen atmosphere furnace |
Scientific and reasonable structure make this furnace have excellent appearance , also surface temperature lower than 50℃.
Furnace use newest Fe-Cr-Al-Mo wire heater, three surface heating, highly increase inoxidizability, and extend heater life for several times.Easy to control temperature by a 100*100*100mm small furnace hearth, thermal field more evenly. This mini box furnace has been widely used in laboratory for incomparable cost performance.

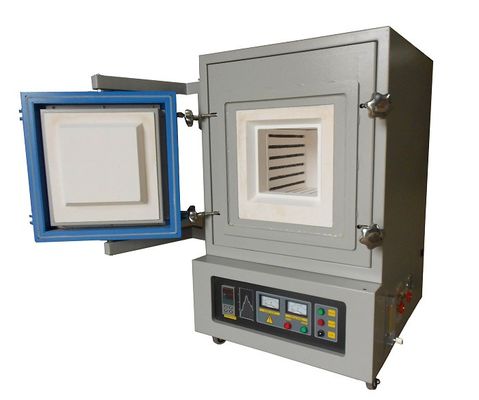

Laboratory Vacuum Muffle Furnace furnace :
1. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. Thermocouple installed for immediate use.
4. Temperature control unit can be separated from furnace , and make moving at easy.
5. Vent port installed on the top for gas flow. ( gas outlet)
6. Furnace chamber size can be customized;
7. Small volume, good working performance, nice outlook, less consumption and convenient to move;
8. The door can be designed to up and down type or slid type;
Technical parameter of 200x200x200mm chamber muffle furnace:
Chamber Size | 300x300x400mm (12"x12"x16") |
Working Temperature | 1200°C (continuous) |
Maximum Temperature | 1100°C (for short time) |
Furnace Atomsphere | Nitrogen, Argon and other inert gas |
Temperature Control | 30 steps programmable and PID automatic control |
Heating Rate | 0~15°C/min (suggestion: ≤10°C) |
Temperature Accuracy | +/-1°C |
Heating Element | Resistance wire |
Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
Max. Power | 8 KW |
Standard package included with atmosphere sintering muffle furnace:
Thermal couple | 1 pc |
Inlet/outlet,valves | 1 set |
Flow meter | 1 pc |
Vacuum gauge | 1 pc |
Vacuum pump | 1 pc |
Furnace door block | 1 pc |
Thermal gloves | 1 pair |
Operation manual | 1 pc |
Standard models of SUPER 1200C laboratory heat treatment furnace
Model | Chamber size(W*H*Dmm) | Max. Temperature |
SP-1200BA-1L | 100x100x100mm(4"x4"x4") | 1200℃ |
SP-1200BA-3.4L | 150x150x150mm(6"x6"x6") | 1200℃ |
SP-1200BA-4.5L | 150x150x200mm(6"x6"x8") | 1200℃ |
SP-1200BA-8L | 200x200x200mm(8"x8"x8") | 1200℃ |
SP-1200BA-12L | 200x200x300mm(8"x8"x12") | 1200℃ |
SP-1200BA-19L | 250x250x300mm(10"x10"x12") | 1200℃ |
SP-1200BA-36L | 300x300x400mm(12"x12"x16") | 1200℃ |
SP-1200BA-49L | 350x350x400mm(14"x14"x16") | 1200℃ |
SP-1200BA-64L | 400x400x400mm(16”x16”x16”) | 1200℃ |
SP-1200BA-125L | 500x500x500mm(20”x20”x20”) | 1200℃ |
SP-1200BA-216L | 600x600x600mm(24"x24"x24") | 1200℃ |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
