|Goods:||Induction Furnace||Rated Temperature:||700℃|
|Rated Capacity:||350kg Aluminum||MF Power:||250kw|
|Melting Frequency:||1000HZ||Melting Rate:||55mins/batch|
|Induction Coil Voltage:||2000V||Transformer Capacity:||250KVA|
|Matched Supply:||Furnace Body , Power Cabinet , Compensation Capacitor Bank|
induction heating furnace,
metal casting furnace
Introduction of Induction Melting Furnace
Induction Melting Furnace is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.

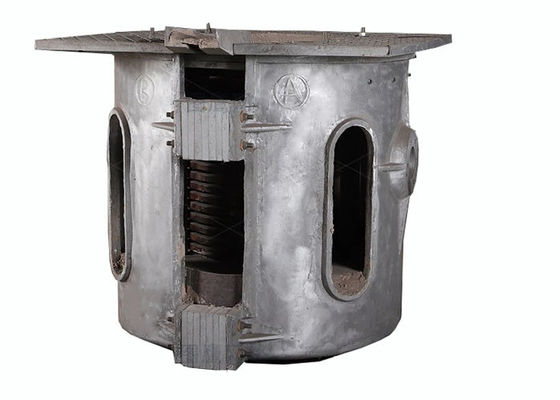

Features of aluminum shell induction furnace:
Aluminum shell furnace is a simple structure with a service life of 5-8 years. There is no magnetizer,
lining ejection mechanism and refractory mortar layer. Generally the capacity is below 2 ton. Aluminum shell furnace is suitable for small tonnage smelting customers.
Instruction overview for melting furnace
This equipment is composed of furnace body, tilting controller, water cooled cable, capacitor, medium frequency, water cooling plant.
1. Furnace Body
Furnace structure has four type, aluminum reduction tilting furnace, aluminum hydraulic furnace, magnetic shielding steel furnace and hydraulic steel furnace reduction tilting furnaces equip with reduction machine, hydraulic tilting furnaces equip with hydraulic pump and work station. The whole sets generally have two furnaces using for melting and maintenance. Induction coil installs in the central of the furnace, it has spiral body with rectangular empty brass circle around, the pipe center should be cooled with water. Copper bar outside induction coil will connect with water-cooling cable. The lining closes to induction coil, which made by burden, the method you can find in related parts below.
2. Tilting Controller
The controller is a control box for tilting furnace. The switch on the controller can choose furnaces and the button can move around through the rubber soft line, and also control the furnace for tilting and resetting (this part should be installed by users themselves).
3. Water-cooled cable
Water cooled cable is made of soft copper wire, hose,cable end, through them to connect with
capacitor and furnace.
Capacitors compose of electric heat, holder, the converge-wires. it supply power.
5. Medium Frequency power cabinet
Medium frequency power cabinet will transmute three-phase ac power frequency into medium ac power.
6. Water-cooling plant(Prepared by user)
Water cooling plant include water inlet and outlet water tank, it supply for an induction coil. water-cooled electric cable and cooling water in capacitor, can be divided into five ways, usually using only three way(once melting furnace does not work the water in the induction coils and cooling cable can be close down through the valve).
Technical parameter of electric induction furnace:
Why Choose us?
1. Low power consumption
Large current system made of pure copper as conductive medium, the whole circuit with less resistance. Electrode arm shaped as copper-clad box type, resistance and heat can be reduced efficiently. Reasonable arrange of all conductive systems to minimize the resistance of every circuit.
2. Safety & Stability
Fll set of hydraulic driving system equipped with accumulator to ensure stability of facilities in the operation process. Whist, equipments can go on the motion when there any emergency accidents happen.
3. High Power Factor
Our power factory could reach over 98%, which could greatly reduce the capacitor box quantities. However we still equip enough capacitor box quantities, which mean your furnace is much much more efficient.
