150kg - 5 Ton Iron Scrap Stainless Steel Induction Melting Furnace Tilting Alloy / Copper

small.img.alt small.img.alt small.img.alt

Large Image :  150kg - 5 Ton Iron Scrap Stainless Steel Induction Melting Furnace Tilting Alloy / Copper

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: GW-0.35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case or by container
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets furnace
Detailed Product Description
Product: Stainless Steel Produce Furnace Capacity: 350kg/ Batch
Operation Temp: 1650C Rated Power: 300KW
Melting Rate: 380kg/h Power Consumption: 0.68kwh/kg
Water Consumption: 24tons/h Usage: Industry Casting
Power: Electric
High Light:

Stainless Steel Induction Melting Furnace


150kg Induction Melting Furnace


5 Ton Induction Melting Furnace

150kg-5Ton Induction Iron Scrap Stainless Steel Produce FurnaceTilting Alloy / Copper


Stainless Steel Produce Furnace

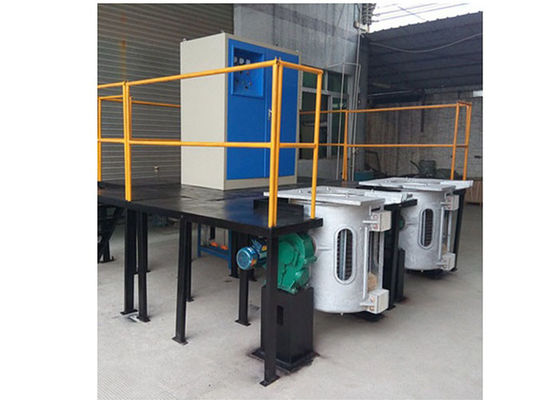

The induction intermediate frequency stainless steel produce furnace is composed of an intermediate frequency power supply cabinet, a compensation capacitor bank, a steel shell (aluminum shell) furnace body, a yoke and water-cooled cables, a hydraulic station, and a furnace tilting control box. It is mainly used for smelting steel, iron, copper, aluminum and alloys. It has the characteristics of high melting efficiency, good power saving effect, uniform metal composition, low burning loss, fast temperature rise, and easy temperature control. It is suitable for various metal smelting occasions.


SUPER Stainless Steel Produce Furnace Advantage:

1. Under normal working conditions, the power consumption per ton of steel smelting is 550-600KW.h;

2. The power factor of stainless steel produce furnace is maintained above 0.96 in the whole process.

3. Effectively control high-order harmonics, do not interfere with surrounding electrical equipment, and do not pollute the power grid;

4. The frequency adapts to a wide range, and the best resonance state is always maintained during the melting process;

5. Zero voltage scan soft start mode, which can be started or stopped at any time in any state, without impact on the power supply;

6. Fast smelting, low production cost; low pollution, in line with national environmental protection requirements;

7. It can be melted directly from the cold furnace, the solution can be completely emptied, and it is convenient to change the melt variety;

8. The power adjustment is flexible and convenient, and can be continuously and smoothly adjusted; the temperature is uniform and easy to control, the oxidation loss is small, and the metal composition is uniform;

9. The furnace shell is made of steel structure or cast aluminum alloy, with a small footprint; the furnace body is easy to turn and tilt, and manual, electric or hydraulic tilting methods can be selected;

10. The leakage alarm device can effectively protect the safety of people and equipment in time;

11. Wide frequency adaptation range, fast melting, low production cost, uniform temperature and easy control;

12. The furnace body is easy to turn and dump, and the metal composition is uniform;



Stainless Steel Produce Furnace Thecnical parameter


Product name and model GW-0.35 Medium Frequency Induction Furnace
Highest temperature 1650°c
Temperature accuracy ±5°c
Load capacity 350Kg
Melting rate 380Kg/hour
Medium Frequency power 300KW
Melting frequency 1000Hz
Power consumption 0.68KWh/Kg
Induction coil voltage 1000V
Water consumption 8tons/hour
Power supply AC,3-phase,208/380/400/415/440/465V,50/60Hz
Tilting furnace device Electric reducer
Furnace shell structure Casting aluminum shell


Packing & Shipping


Small induction melting furnace will be packed by standard plywood case for exporting ;

Suppose your order is of big volume or 1pc furnace with large capacity, the products will be delivered by 20GP or 40GP container. Top open container is optional as well.



  • Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
  • This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
  • Replacement will be shipped to you after photo or other evidence are provided and investigated
