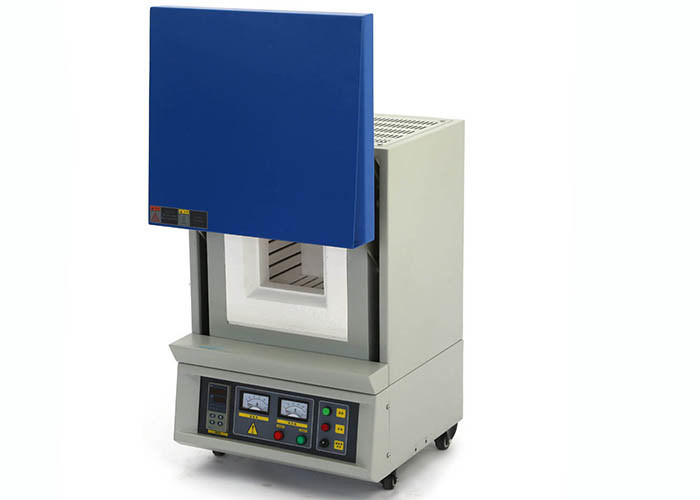

1500/1600 /1700/1800C Heat Treatment Muffle Furnace

1500/1600 /1700/1800C Heat Treatment Muffle Furnace
1500/1600 /1700/1800C Heat Treatment Muffle Furnace 1500/1600 /1700/1800C Heat Treatment Muffle Furnace

Large Image :  1500/1600 /1700/1800C Heat Treatment Muffle Furnace

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700B-1L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500sets/month
Detailed Product Description
Goods: Heat Treatment Muffle Furnace Max Temperature: 1800℃
Operation Temperature: 1700℃ Insulation Material: Light Alumina Ceramic Fiber Board
Heating Element: MoSi2 Heater Heating Rate: 0-20℃/min
Temperature Accuracy: +/-1℃ Furnace Structure: Double Shells
Certification: CE Volume: 1L
High Light:

1800C Heat Treatment Muffle Furnace

,

1700C Heat Treatment Muffle Furnace

,

1800C muffle furnace for heat treatment



            1500/1600 /1700/1800 C Heat Treatment Muffle Furnace



 High Temperature Heat Treatment Furnace Application:



Lab heat treatment furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientificresearch institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.





 1800C Heat Treatment Furnace Overview:

SP 1800 series heat treatment furnace is ideal for heat treating, reacting studies, sintering processes, and ceramic firing. Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 45 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.

SP 1800 series heat treatment furnace features high quality MoSi2 rod with Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface, also keep the surface safe to touch. The furnace operation is controlled by 30 segments digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well.

Chamber Lab Heat Treatment Furnace Technical Data :

Model SP-1800B-1 high temperature lab muffle heat treatment furnace
Power supply AC 220V 50/60HZ
Furnace chamber 100*100*100mm(W x H x D Customizable)
Rated power 2KW
Furnace chamber 1900 type alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties.
Heating elements High quality silicon molybdenum rod (MoSi2 rod)
Thermocouple B-type double platinum rhodium thermocouple
Temperature control mode The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program
Continuous working temperature ≤1700℃
Maximum temperature 1800℃
Max. Heating rate 20℃/min
Recommended heating rate 15℃/min
Temperature control accuracy ±1℃
Standard accessories Door brick 1 piece ;Crucible tongs 1 piece
Optional accessories Furnace hobs , a variety of corundum crucible, oven glove,computer control software and paperless recorder, etc.





Standard model of chamber lab muffle furnace :

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1800B-1 1800℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1800B-4.5 1800℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1800B-8 1800℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1800B-12 1800℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1800B-36 1800℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW



1500/1600 /1700/1800C Heat Treatment Muffle Furnace 0

Warranty: One year limited warranty with lifetime support, excluding heating element

and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage

from wrong operate and use are not under this coverage



Packing and shipping :

Lab muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
