Product Details:
Payment & Shipping Terms:
|
| Product: | Top Open Tube Furnace | Max. Temp: | 1200℃ |
|---|---|---|---|
| Operation Temp.: | 1100℃ | Rated Power: | 3KW |
| Furnace Type: | Split Top Open | Insulation Material: | Alumina Ceramic Fiber Board |
| Chamber Size: | 50*400mm(OD*L) | Classification: | Laboratory Heating Equipments |
| High Light: | Top Open Electric Tube Furnace,1200C Electric Tube Furnace,50mm OD Electric Tube Furnace |
||

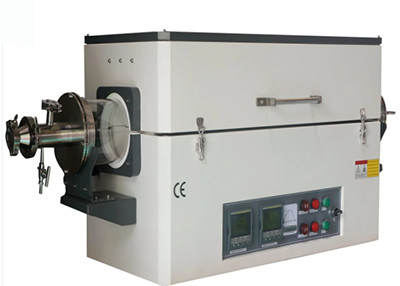

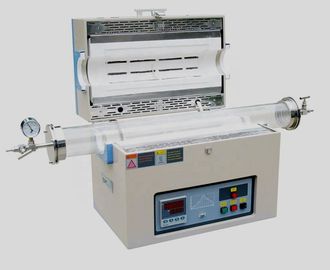

1200C Top Open Electric Tube Furnace Description:
SP 1200C Laboratory Electric Furnace 50x600mm (ODxlength) Portable split-tube furnace with helical coils embedded in 1500C alumina fibre insulation. The double-layered steel inner shell helps minimize heat loss from the outer surface. The laboratory tube furnace is controlled by a 30-segment programmable temperature digital controller. All our laboratory furnaces are CE compliant.
Features of Electric Tube Furnaces
1. Compact, portable and lightweight design.
2. The split furnace is convenient for quick and easy maintenance of furnace lining and lines.
3. Standard package includes a set of stainless steel vacuum sealing flanges with valve and pressure gauge.
4. Microprocessor-based self-tuning PID controller.
5. Multiple atmosphere processes in a single cycle are possible (eg: binder burnout in air and parts sintering in rough vacuum or inert gas environment.)
6. Long-life K-type thermocouple.
7. Operational safety
Technical Parameter of 1200C Top Open Electric Tube Furnace :
| Product name and model | SP-1200T-54 vacuum tube furnace |
| Heating tube size(OD×L) | Dia50x400mm |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
SP-1200T SUPER Vacuum Tube Furnace standard model
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1200T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1200T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-84 | Φ80x400 mm(3.2"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-104 | Φ100x400 mm(4.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-154 | Φ150x400 mm(6.0"x16") | TW-1A;1L/S;120W;110V/220V |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 20 days according to different products request.
Our Warranty :
One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Standard Export Safe Packing for 1200C Laboratory split vacuum tube furnace with quartz tube:
1.The muffle lab furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
