Product Details:
Payment & Shipping Terms:
|
| Goods: | Small Lab Muffle Furnace | Max. Temperature: | 1400 Degree |
|---|---|---|---|
| Operation Temperature: | 1300 Degree | Heating Element: | SiC Rod |
| Thermocouple: | K Type | Heating Rate: | 20C/min |
| Temperature Accuracy: | +/-1C | Max. Vacuum: | -0.1MPa |
| Application: | Colleges And Universities | Chamber Size: | 50*300mm |
| High Light: | 1400 Degree Lab Muffle Furnace,Lab Muffle Furnace For Colleges,1400 Degree small muffle furnace |
||

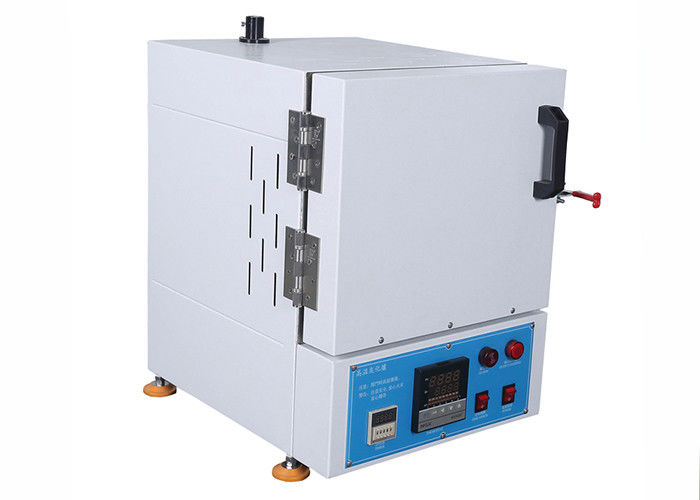

1400 Degree Small Lab Muffle Furnace For Colleges And Universities
Introduction of Lab Muffle Furnace :
Lab Muffle Furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment,ect.
Main technical parameter of Lab Muffle Furnace :
| Product name and model | SP-1400T-53 1400℃ tube lab muffle furnace |
| Heating tube size(OD×L) | Dia50x300mm |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1400°C working time ( < 3 hours) |
| Working temperature | 400-1300°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | S type |
| Heating element | SiC rod |
| Ultimate vacuum | -0.1MPa |
| Inlet gas | nitrogen ,argon and other inert gas |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four figure liquid crystal display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
SP-1400T tube lab muffle furnace standard model
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1400T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1400T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-84 | Φ80x400 mm(3.2"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1400T-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1400T-154 | Φ150x400 mm(6.0"x16") | TW-1A;1L/S;120W;110V/220V |
More questions ?
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
4. Payment methods?
T/T, L/C, D/P and so on
