Name: | MoSi2 Heater Element | Application: | High Temperature Oven |
---|---|---|---|
Shape: | U/W/UL | Material: | Mo |
Installation: | Vertical Installation | Diameter: | 3/6mm, 4/8mm 6/9mm;9/18mm |
Hot Zone Length: | 100-1500mm | Surface Load: | 10/14.5W/cm2 |
High Light: | Special Shape MoSi2 Heater Elements,High Temperature Oven MoSi2 Heater Elements |
1. Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2. length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .

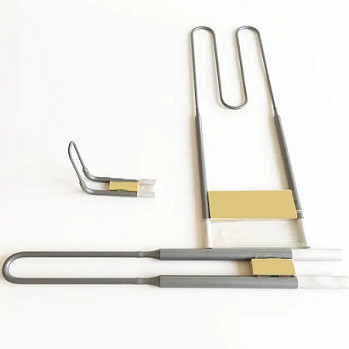

4. Rod shape : straight type ;U type ; W type ;L type and other special type
5. Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
MoSi2 Heater Element Features
1 .Max.Temperature 1800c/1850c
2 .High strength and Excellent Shock Resistance
3 .Heat Source is Free of Noise and Air Pollution
4 .Anti-oxidization, Anti- corrosion
5 .Easy to Installation and Maintenance
For some common sizes of silicon-molybdenum rod heating elements, we usually have them in stock and can arrange quick delivery for you, so please contact us for stock information!
Precaution for use:
1. The 1700C MoSI2 heating element of silicon molybdenum rod should not be used in the temperature range of 400 ℃ to 700 ℃, so under this unfavorable condition, the component will undergo low temperature oxidation and damage the component.
2. The heating element of silicon molybdenum rod is suitable for use in air and neutral atmosphere. The reducing atmosphere such as hydrogen will destroy the protective layer, and the steam of chlorine and sulfur will directly damage the element.
3. Silicon molybdenum rods are somewhat softened at high temperatures (above 1500 degrees), and they are hard and brittle at low temperatures. In order to avoid stress during temperature changes, which is conducive to thermal expansion and contraction of components, it is best to use a free vertical hanging installation method . The disassembly and replacement of the hoisting components is more convenient. It is not necessary to wait for the furnace to cool down, and it can be replaced in a hot state.
Application of MoSi2 heating element heater:
Item | name | distinction criterion | specification | Using range |
Heating elements | 1700 type | Element operating temperature 1700℃ is acceptable |
Le Φ |
high temperature electric resistance furnace |
1800 type | Element operating temperature 1800℃ is acceptable | |||
1800J type | Element operating temperature≥1800℃ |
Le Φ |
Special,high temperature and high-power electric resistance furnace | |
1800T type | Element operating temperature≤1800℃ |
Le Φ |
Not oxidized special air high temperature electric resistance furnace |
Physcial property of molybdenum disilicide heating element MoSi2 rod:
Packaging & Shipping
1. From the inside to outer packaging, is foam sponge, carton, wooden case.
2. Sea or Air transportation, DHL express.
3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.
Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :
d = the diameter of hot zone ?
c = the diameter of cold zone ?
Le = the length of hot zone ?
Lu = the length of cold zone ?
a=Shank spacing
g=junction length
How many pcs ?
