| Name: | New Material Tubular Furnace | Type: | Lab Or Industry Test Or Sintering |
|---|---|---|---|
| Heating Element: | SiC Heating Element | Operation Temp.: | 1300℃ |
| Insulation Material: | Light Alumina Ceramic Fiber Plate | Temperature Accuracy: | ±1℃ |
| Temp. Uniformity: | ±1℃ | Max. Vacuum: | -0.1MPa |
| Chamber Size: | 80*400mm | Heating Rate: | Max 20C/min |
| High Light: | High Temperature Vacuum Tubular Furnace,Vacuum Tubular Furnace Nitrogen Protect |
||

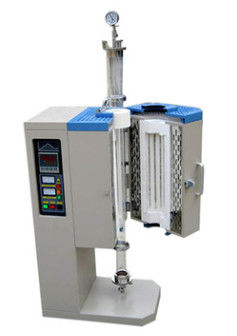

1400C High Temperature Vacuum New Material Tubular Furnace Nitrogen Protect
A vacuumnew material tubular furnace is a type of furnace used for high-temperature materials processing that operates under a vacuum or low-pressure atmosphere. This type of tubular furnace relies on resistance heating to create a high-temperature environment within a sealed chamber.
A vacuumnew material tubular furnace consists of a cylindrical working chamber or tube, typically made from refractory materials such as graphite or ceramic, which is heated through high-power heating elements placed within the furnace walls. The vacuum new material furnace is then evacuated to remove any residual gas from the chamber, creating a high-purity, oxygen-free atmosphere that is ideal for materials processing.
SP-1400T vacuum new material tubular furnace application:
1. In chemical analysis
2. Physical decomposition and synthesis, superhard materials (like ceramics)
3. Metal heat treatment of sintering process research and other scientific experiments
4. Universities and colleges, scientific research institutes
5. Smelting and purification of rare and precious metals
Technical data of SP-1400T electric tube furnace:
| Product name and model | SP-1400T-84 electric tube furnace |
| Heating tube size(OD×L) | Dia80x400mm |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1400°C working time ( < 3 hours) |
| Working temperature | 400-1300°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | S type |
| Heating element | SiC rod |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Tube material | ceramic tube |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Standard models of SUPER 1400C electric tube furnace:
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
