Laboratory Electric Molybdenum Disilicide Mosi2 Heater Elements Hot Terminal Bent 90 Degree

              Laboratory Electric Molybdenum Disilicide Mosi2 Heater

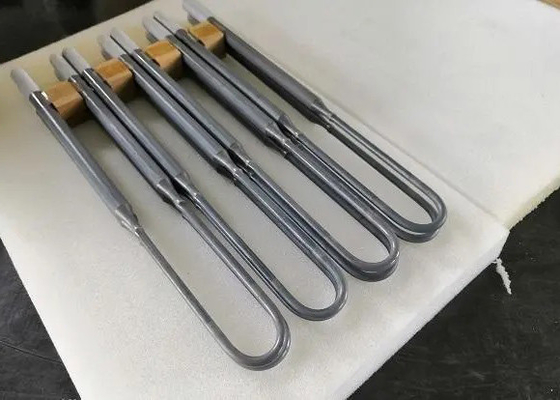

Hot Terminal Bent 90 Degree Laboratory Electric Molybdenum Disilicide Mosi2 Heater

Molybdenum Disilicide Mosi2 Heater heating element for element temperature up to 1800C(3270F), Our MoSi2 heating elements are available as straight or bent elements in a wide range of shapes and sizes, All characterized by long life and consistant perfomance.

We provide special designed MoSi2 elements according to customer needs, enabling an optimized element design for each particular application.

Delivery time: 7days after receipt of deposit.

What’s Molybdenum Disilicide Mosi2 Heater ?

Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material. When it’s heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1800°C, the applicable temperature is between 500-1700°C.

Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum.

Molybdenum disilicide (MoSi2) is a refractory metal silicide that is primarily used as a heating element. In recent years, its potential for use as a structural ceramic has been recognised, as the material combines excellent oxidation resistance and high elastic modulus at elevated temperatures.

Application: It can be used as heating elements of industrial high-temperature furnace, like ceramics, magnetic materials, glasses, metallurgy, refractories etc.

Application of Molybdenum Disilicide Mosi2 Heater :

Main features of Molybdenum Disilicide Mosi2 Heater :
1.The leading products of the company Molybdenum Disilicide Heating Element Type 1700grade and 1800grade elements are high-tech products researched and developed by experts from China and abroad.
2.MoSi2 heating element can quickly form a thin and adhesive anti-oxidizing layer of quartz glass (SiO2), under the high temperature oxidizing condition. If the protective layer was damaged, the element can reform a new one, so MoSi2 heating elements have a very good anti-oxidation properties, it also means that the heating element can be used on operation for a much longer time than the traditional one.
3.The resistivity of the Mosi2 heating element is not changing with the time, so a new one can be installed without effecting the old one. This can result of the huge saving in furnace maintenance fee sand time as well, increase the working efficiency. This is the key point of Mosi2 heating element being a better material and being widely used.

Physcial property of molybdenum disilicide heating element MoSi2 rod:

Packaging & Shipping

1. From the inside to outer packaging, is foam sponge, carton, wooden case.

2. Sea or Air transportation, DHL express.

3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.

Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

d = the diameter of hot zone ?

c = the diameter of cold zone ?

Le = the length of hot zone ?

Lu = the length of cold zone ?

a=Shank spacing

g=junction length

How many pcs ?
