Product Details:
Payment & Shipping Terms:
|
| Goods Name: | MoSi2 Heating Element | Certification: | CE |
|---|---|---|---|
| Diameter: | 3/6mm；6/12mm；12/24mm | Temperature: | Up To 1800℃ |
| Length: | 100-10500mm | Material: | Molybdenum Disilicide |
| Power Source: | Electric | Application: | For High Temperature Oven |
| High Light: | 10500mm Length Mosi2 Heating Elements,Durable Mosi2 Heating Elements |
||

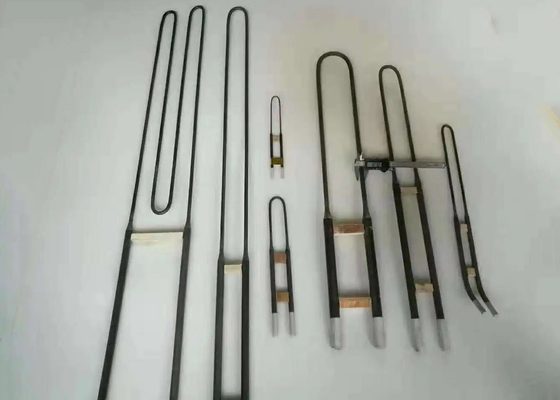

MoSi2 Heating Elements Introduction
1. MoSi2 heating elements is a kind of resistance heating element made from Molybdenum Disilicide.
2. It’s mainly used in high temperature furnaces and kilns as heaters.
3. It can be used in air and various gases environments.
4. Working temperature of MoSi2 heating element is 1300C to 1800C.
5. Widely used in the industries of metallurgy, glass, ceramic refractory,crystal electronic device, industrial furnace manufacture, etc
Having the same mechanical character as other ceramic products , MOSI2 heating elements are brittle materials so that they are easy to rupture at the normal temperature , which brings some difficulties to transport and install , but it may be avoided if they were installed and used correctly .
MoSi2 Heating Element Data:
| High purity Mosi2 Rod heating element | |||
| Item: | Molybdenum silicide heating element | Type: | U, W |
| Max Tempearture: | 1800C | Working Tempearature: | 1700C |
| Size: | Accord to you requirement | Application: | Heat treatment furnace part |
| Order sample: | d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm) d = the diameter of hot zone c = the diameter of cold zone Le = the length of hot zone Lu = the length of cold zone |
||
| Standard sizes: | M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24 | ||
| M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24 | |||
MoSi2 rod heating element characters:
1. diameter:3/6mm;6/12mm;9/18mm;12/24mm
2. length:Lu length from 150 to 700mm,Le length from 150 to 600mm,customized is available .
3. operation temperature: from 500C to 1700.C .Max temperature can up to 1800.C
4. shape : U type ; W type ;straight type ;L type
5. function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace.
MoSi2 Heating element use and maintenance
1. MoSi2 heater belong to Metal ceramic material. They are hard, crisp and low impact strength at room temperature .Therefore to be careful to avoid damage during transport and installation.
2. When MoSi2 heater continuously operate in an oxidation atmosphere, the surface temperature of 1700 type should not exceed 1700 ° C,1800-type should not over 1800 ℃ and for intermittent use,1700 type-element should not over 1650 ° C,1800type-element cannot exceed 1750 ℃.
MoSi2 heating element Packing
Export carton packing box for small qantity;
Export wooden packing box for large qantity.
MoSi2 heating element Shipping
Fedex/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods;
Customers specifying freight forwarders or negotiable shipping methods;
Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
