|Name:||Electric Muffle Furnace||Chamber Size:||100x100x150mm|
|Max. Tem.:||1200℃||Working Temperature:||1100℃|
|Temp. Accuracy:||±1℃||Rated Power:||2KW|
|Heating Rate:||20℃/min||Thermocouple:||K Type|
|Classfication:||Lab Heating Quipment||Voltage:||110-240V, Single Phase|
1.5L scientific muffle furnace,
1.5L Electric Muffle Furnace,
1200C Electric Muffle Furnace
Laboratory using electric furnace Application:
Muffle lelectric furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges,scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;

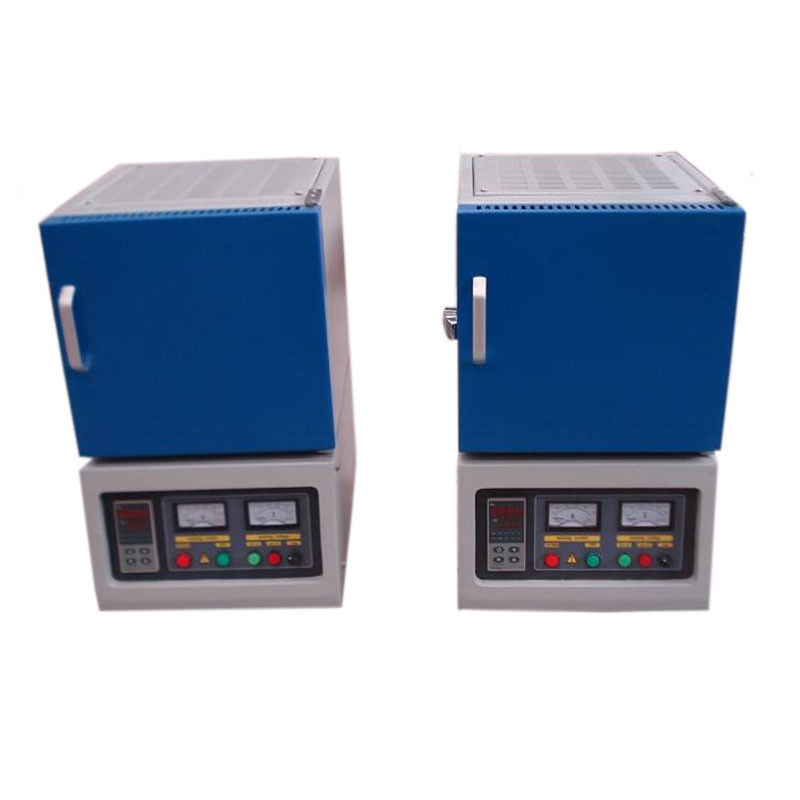

Description of laboratory using programmable electric furnace:
1200C Lab electric furnace is adopted high quality resistance wire as heating element with dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. The furnace chamber is adopted the 1400 type imported polycrystalline alumina fiber. Equipped with intelligent cooling system between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
Technical parameter of 1200C high temperature programmable electric furnace:
|Product||SP-1200B-1.5L chamber lab electric furnace|
|Useful chamber size||100*100*150mm(1.5L W * H* D)|
|Max Temp||1200℃ ( < 3 hrs)|
|Working Temp||0-1100℃ (adjustable, for long time )|
|Temp accuracy||±1 ℃|
1-20℃/min (adjustable,advise less than 15℃/min)
|Heating Element||Resistance wire|
|Furnace liner||Light durable ceramic fiber plate|
|Furnace shell||Double shells with fan cooling|
|Temp. measurement||By K type thermocouple|
|Temp. Control||30 segments programmable and PID auto control|
|Temperature display mode||Four Figure Liquid Crystal Display|
|Furnace surface temperature||≤50℃|
|Working Voltage||AC,1-phase ,220V ,50/ 60HZ|
|Optional part||Can be connected with computer if customer need|
|Freebies||1.oven glove 1 set ; 2. Pliers 1pc|
