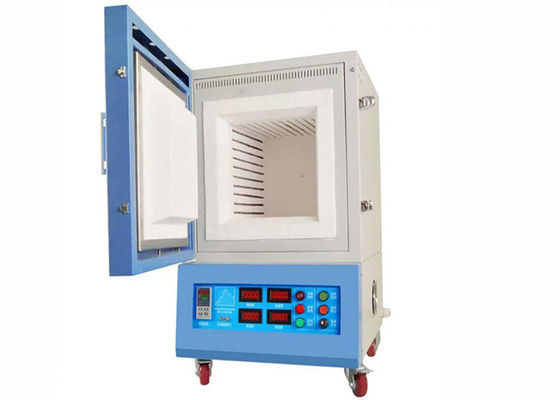

SiC Heating 1400C Electric Muffle Furnace Laboratory High Temperature

SiC Heating 1400C Electric Muffle Furnace Laboratory High Temperature
SiC Heating 1400C Electric Muffle Furnace Laboratory High Temperature

Large Image :  SiC Heating 1400C Electric Muffle Furnace Laboratory High Temperature

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1400B-4.5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 500sets/month
Detailed Product Description
Name: 1400C Laboratory Electric Muffle Furnace Max.Temperature: 1400℃
Operation Temp.: 1300℃ Heating Element: SiC Rod
Heating Rate: ≤20℃/minute Temp Accuracy: ±1℃
Refractory Material: Light Alumina Ceramic Fiber Board Chamber Size: 150x150x200mm
Useful Volume: 4.5L Power: Electric
High Light:

1400C Electric Muffle Furnace


SiC Heating Electric Muffle Furnace


1400C high temperature muffle furnace


              High Temperature​ SiC Heating 1400C Laboratory Electric Muffle Furnace


Electric Muffle Furnace Brief Introduction :

SUPER large-scale intelligent electric muffle furnace temperature control system is integrated with the furnace body, compact structure, beautiful appearance, stable and reliable operation in terms of operation; the furnace adopts new ceramic fiber materials, fast heating, good heat preservation, light weight and energy saving; product adoption It can only be controlled. With the microprocessor as the control center, PID control algorithm and adaptive control technology can only control the preheating temperature. The LCD screen displays data and progress in English. Touch keyboard input, with automatic program and self-selected program, users can set 30 segments control processes according to their needs. The furnace body is made of high-quality carbon steel and stainless steel, the surface is electrostatic sprayed and the double-layer furnace body structure is more energy-saving than the traditional muffle furnace.

All indicators of this muffle furnace have reached the international advanced level. It can perform special heating programs such as fast ashing, slow ashing, volatile content, Roga index, and adhesion index, with superior performance.




SP-1400B Lab Muffle Furnace Technical Parameter :

Model SP-1400B-4.5L
Standard Working Temperature 1300.C ( continuous )
Maximum Working Temperature 1400.C ( < 3 hrs)
Inside Chamber Size Customizable
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~20.C/ min (suggestion:<15.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating elements
Thermocouple S type
Max. Power 4KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc


Electric Muffle Furnace Application:

High temperature electric furnace in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

1. Gravimetric analysis;

2. Sintering;

3. Quantitative analysis;

4. Heat treating;

5. Glass preparation;

SiC Heating 1400C Electric Muffle Furnace Laboratory High Temperature 0




Delivery times :

♥For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥Other customized sizes the delivery time is from 15 days to 30 days according to different products request.


Our Warranty :


Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.


Our advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that
