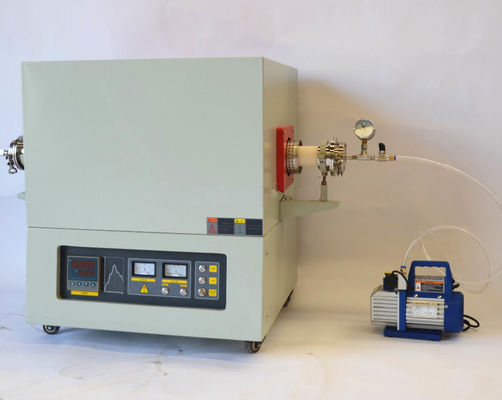

Adjustable Temperature 1600C Vacuum Tube Furnace PID Control

Adjustable Temperature 1600C Vacuum Tube Furnace PID Control
Adjustable Temperature 1600C Vacuum Tube Furnace PID Control

Large Image :  Adjustable Temperature 1600C Vacuum Tube Furnace PID Control

Product Details:

Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: ST-1700T-83

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 15-20 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 400 sets/month
Detailed Product Description
Product: Tubular Lab Electric Furnace Chamber Size: OD80*300mm (L)
Max. Temp.: 1700℃ Operation Temp.: 1600℃
Heating Element: MoSi2 Rod Classification: Laboratory Heating Equipments
Heating Rate: Max 20C/min Power(w): Adjustable
Condition: New Temp. Measuring: By B Type Thermocouple
High Light:

1600C Vacuum Tube Furnace

,

1600C high temperature laboratory furnace

,

PID Control Vacuum Tube Furnace



     Tubular Lab Electric Muffle Furnace 1600C PID Auto Control Lab Testing



1700C Tubular Electric Muffle Furnace Brief Introduction:

Laboratory equipment PID tubular lab electric furnace is a ideal laboratory equipment for sample annealing and high temperature test, is widely used for fast heating and sample annealing is vacuum or flowing atmosphere gas.Its tube is made of high purity quartz or alumina and sealed by the vacuum flange.

Adjustable Temperature 1600C Vacuum Tube Furnace PID Control 0



Small Annealing 1700C Vacuum Lab Electric Muffle Furnace Main charactertics:

1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.

2: Furnace Chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .

3: Double shell with fan cooling to make the shell temperature close to the room temperature.

4: Intergrated doule circruit to make the furnace more safe , stable and realiable.

5: Humanized design and advaned technics to make the furnace more beautiful and durable.

6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.



Main Technical parameter of 80*300mm 1700C vacuum lab electric muffle furnace

Product name and model SP-1700T-83  lab electric furnace
Heating tube size(OD×L) Dia80x300mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1700°C working time ( < 3 hours)
Working temperature 400-1600°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple B type
Heating element MoSi2 heating element
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added



Standard models of SUPER 1700C tube lab electric furnace :

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1700T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-84 Φ80x400 mm(3.2"x16") TW-1A;1L/S;120W;110V/220V
SP-1700T-104 Φ100x400 mm(4.0"x16") TW-1A;1L/S;120W;110V/220V
