105kw Gas Nitriding Furnace , Atmosphere Protect Vacuum Heat Treatment Furnace

China Henan Super Machinery Equipment Co.,Ltd certification
China Henan Super Machinery Equipment Co.,Ltd certification
It's good cooperation with the Super Machinery , we hope keep long business.

—— David Smith

The high temperature tube furnace received, the outer packaging is very strong, and there are a lot of accessories. Thank you for your patience to explain the furnace before buying.

—— Simon Liu

I'm Online Chat Now

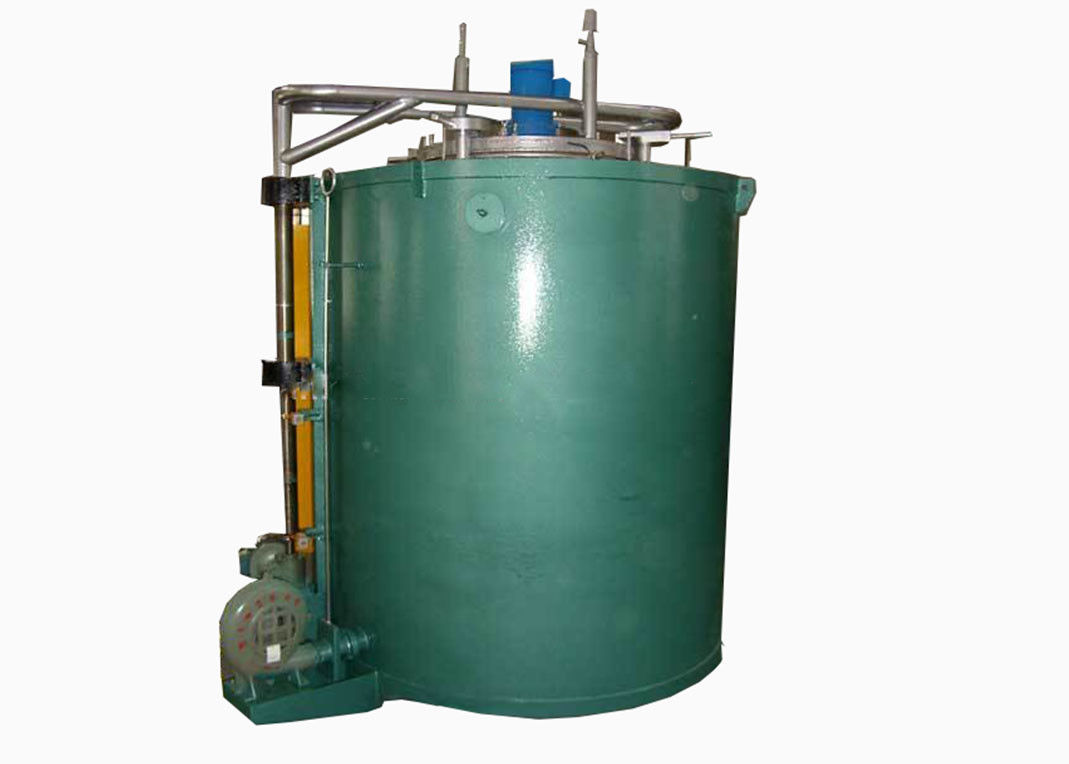

105kw Gas Nitriding Furnace , Atmosphere Protect Vacuum Heat Treatment Furnace

105kw Gas Nitriding Furnace , Atmosphere Protect Vacuum Heat Treatment Furnace
105kw Gas Nitriding Furnace , Atmosphere Protect Vacuum Heat Treatment Furnace

Large Image :  105kw Gas Nitriding Furnace , Atmosphere Protect Vacuum Heat Treatment Furnace

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: RN-105-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: by strong plywood case or by container directly
Delivery Time: 15-20 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product: Vacuum Heat Treatment Furnace Model: RN-105-6
Rated Power: 105kw Rated Temperature: 650℃
Working Chamber Size: Dia800x2400mm Temperature Uniformity: +/-5C
Temperature Control Mode: PID Control , Paper Less Recorder Voltage: 380/440V
Frequency: 50/60HZ Heating Element: 0Cr25Al5 Resistance Wire
High Light:

electric heating furnace


high efficiency furnace

   RN-105-6 Atmosphere Protect Vacuum Heat Treatment Furnace Gas Nitriding

Introduction of vacuum heat treatment furnace:

This furnace suitable for gas nitriding treatment of various of die mold(especially suitable for H13), measuring tool, cutting tool (such as: high speed steel cutter) and so on, crankshaft, gear, cylinder liner, mechanical parts and wear-resistant parts heat treatment.


Function of vacuum heat treatment furnace:


1) To obtain high surface hardness

2) To increase wear resistance and antigalling properties

3) To improve fatigue life

4) To improve corrosion resistance

5) To obtain a surface that is resistant to the softening effect of heat at temperatures up to the nitriding temperature.


Heat treatment furnace Structure:

The furnace is comprised of furnace body, sealing system and temperature control. The furnace body is comprised of furnace shell, furnace lining, heating elements, muffle tank, furnace cover, fan and furnace cover lifting mechanism.


Furnace shell: The frame of furnace shell is fabricated from 3mm steel plates and 12# ~14#sectional steel;

Furnace lining: The furnace lining is a composite structure, the main body is lined with aluminum fiber blocks;

Heating elements: The furnace employs quality 0Cr25AL5 high temperature alloy belts as heating element;

Nitriding furnace tank: It is made of 8mm 321 (1Cr18Ni9Ti) heat-resistant stainless steel by welding;

Furnace cover: The furnace cover is made from A3 #30mm steel plates;

Ammoina dryer mixing fan: The furnace cover is equipped with a mixing fan. The fan impeller is made from 316L steel centrifugal vanes.

Furnace cover up-down mechanism: The furnace cover moves up or down electrically through an electrical screw.

Temperature control system and Nitriding process control system




More about our well type furnace

1. Use for heat treatment in air of steel parts especially the long pieces .When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.

2. one area control ,using intelligent digital display instrument with silicon controlled temperature control, also have heat preservation time relay, with the function of over temperature alarm.

3. The heating element is 0Cr21Al6Nb heating filament.

4. Lining by energy-saving light and aluminum silicate refractory fiber and diatomite brick.

5. Furnace cover open by leverage.

6. Equipped with heat resistant steel skirts in the middle.


Technical parameter of RN-105-6 heat treatment  furnace :

Furnace type RN-105-6 nitriding furnace
Effective working size Φ800×2400MM
Max working temperature 650℃
Heating zone 1 zone+1 point temperature measurement
Rated power 105KW(1-100% adjustable)
Heating element connection method Y
Temperature control accuracy ±1℃
Temperature uniformity ±5℃
Temperature control method

intelligent temperature controller;

over-temperature alarm;

Empty furnace power consumption ≤18%
Refractory lining All fiber structure
furnace body outer wall temperature ≤45 + room temperature
Furnace cover Electrical screw up-down mechanism
Heating element material 0Cr25AL5 resistance strip
Fast cooling device 0.75KW Cooling fan
Muffle tank 8mm, 321 heat resistant steel
Refractory lining All fiber structure
Rated voltage 380V, 50HZ


Stanard model of SUPER heat treatment furnace :

Model Rated Power (KW) Working Size (D*H mm) Working chamber size(mm) Rated temp. Rated voltage(V)
RN-35-6 35 500x650 200 650℃ 380/440
RN-60-6 60 600x1200 400 650℃ 380/440
RN-75-6 75 800x1200 550 650℃ 380/440
RN-90-6 90 800x1600 600 650℃ 380/440
RN-105-6 105 800x2400 1000 650℃ 380/440
RN-120-6 120 800x3000 1200 650℃ 380/440
RN-150-6 150 700x4000 2000 650℃ 380/440


Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.

All products sold by our company In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
