650C Gas Nitriding Furnace , Resistance Wire Heating Element Electric Heating Furnace

650C Gas Nitriding Furnace , Resistance Wire Heating Element Electric Heating Furnace
650C Gas Nitriding Furnace , Resistance Wire Heating Element Electric Heating Furnace

Large Image :  650C Gas Nitriding Furnace , Resistance Wire Heating Element Electric Heating Furnace

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: RN-75-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: by strong plywood case or by container directly
Delivery Time: 20-25 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200 sets per month
Detailed Product Description
Product: Electric Heating Furnace Model: RN-75-6
Rated Power: 75kw Rated Temperature: 650℃
Working Chamber Size: Dia 800x1200mm Furnace Cover: Lift By Electric Motor
Temperature Uniformity: +/-5C Temperature Control Mode: PID Control , Paper Less Recorder
Warranty: 12 Months Application: Gas Nitriding
High Light:

electric heating furnace


high efficiency furnace

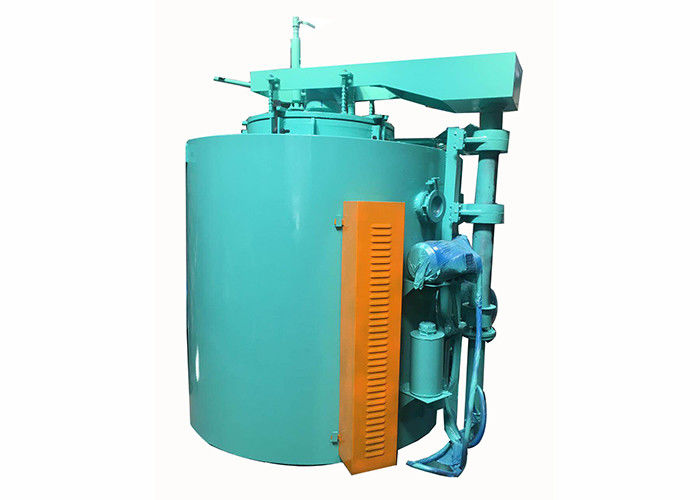

    Well-Type 650C Gas Nitriding Electric Heating Furnace Resistance Wire Heating Element

Introduction of electric heating furnace:
Pit type gas nitriding furnace is cycle type furnace, apply to the pole, long axial parts heat treatment. The Wells of the furnace body is cylindrical, by special crane installed vertically within the charging heating workpiece. Pit type furnace is usually placed below the ground plane in the shop, also have placed above the ground plane, or each half of the under ground plane.
What we can get by this heat treatment furnace :

1) To obtain high surface hardness

2) To increase wear resistance and antigalling properties

3) To improve fatigue life

4) To improve corrosion resistance

5) To obtain a surface that is resistant to the softening effect of heat at temperatures up to the nitriding temperature.
More about our well type furnace
1. Use for heat treatment in air of steel parts especially the long pieces .When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.
2. Two area control ,using intelligent digital display instrument with silicon controlled temperature control, also have heat preservation time relay, with the function of over temperature alarm.
3. The heating element is 0Cr21Al6Nb heating filament.
4. Lining by energy-saving light and aluminum silicate refractory fiber and diatomite brick.
5. Furnace cover open by leverage.
6. Equipped with heat resistant steel skirts in the middle.

Gas Nitriding Furnace Well Type High Quality Industrial Oven
UsageMetal workpiece Nitriding
VoltageAC 380V 50/60Hz 3Phases
Chamber SizeCustomizable
Rated Temperature650℃
Temperature Accuracy±1℃
Heating Element0Cr25Al5 Resistance Wire.
Controlling System

1. 30 programmable segments PID auto control the process of heating, insulation and cooling.
2. TRIAC module to ensure the temperature accuracy to ±1℃.
3. Over temperature, overflowing and thermocouple broken alarm and power auto cut-off for protection.
4 Other electric components adopt Schneider, Siemens etc.

Furnace Chamber

1. The refractory layer is building by 0.8 density high strength gather light mullite brick.
2. The insulation layer is 1260 type alumina fiber blanket and support by alumina bricks.
3. The composite structure chamber is composed by refractory brick and refractory fiber.

Furnace Shell, Tank and Basket

1.Furnace shell: weld by steel material, anti-rust painting.
2. Furnace tank and basket: heat-resistance cast steel.

Furnace Cover

1. Silicon rubber piece &compression bolt sealing, water cooling for sealing pieces.
2. Air intake & exhaust device with water cooling fan.
3. The airflow circulation forced by water cooling fan to ensure the uniformity of temperature and atmosphere inside furnace.
4. 10/25 hydraulic device for easily opening the furnace.
5. Two limit switches in the lifting shaft, auto turn off the fan power when opening the cover, auto turn off total when the cover is lifting to the top.
6. Special design blower to shorten the nitriding period and increase cooling rate.

Nitriding System

1. Furnace tank: 304 stain steel, 5 mm thickness.
2. Dropping system: 3 kinds of liquid simultaneously, flow-meter and needle valve.
3. Cooling drum for processed work-piece.

Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by our company In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
