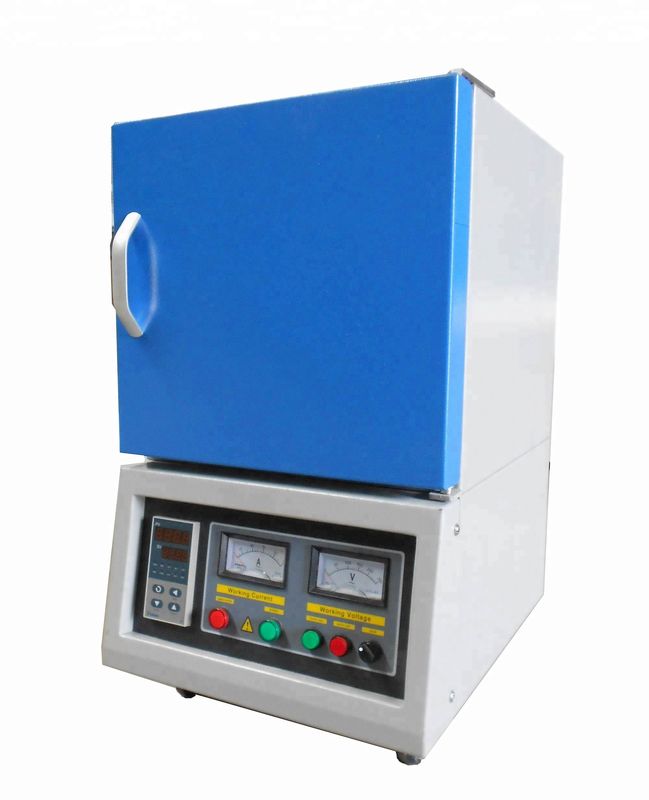

High Temp Gold Silver Melting 12L Industrial Muffle Furnace

High Temp Gold Silver Melting 12L Industrial Muffle Furnace
High Temp Gold Silver Melting 12L Industrial Muffle Furnace

Large Image :  High Temp Gold Silver Melting 12L Industrial Muffle Furnace

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, , L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: Industrial Muffle Furnace Certification: CE
Chamber Size: 200x200x300mm Temperature Control: PID Auto Control
Max. Temperature: 1200℃ Operation Temperature: 1100℃
Heating Element: Fe-Cr-Al-Mo Resistance Wire Thermocouple: K Type
Temp. Accuracy: +/- 1.C Insulation Material: Alumina Ceramic Fiber Board
Furnace Structure: Double Shells
High Light:

High Temp Industrial Muffle Furnace


12L Industrial Muffle Furnace


12L high temperature muffle furnace


                High Temperature Gold Silver Melting Industrial Muffle Furnace


Heat Treatment Melting Industrial Muffle Furnace Features:

1. Double layers steel casing with air cooling to keep furnace surface temperature lower than 50°C, much safer to touch.
2. High purity fibrous alumina insulation for Max. energy saving.
3. Special refractory coating on inner and heating element to increase furnace life.
4. PID temperature controller to meet full automatic constant temperature function.
5. Fast heat-up to reduce energy consumption.
6. Over temperature protection and over-load protection.



High Temp Gold Silver Melting 12L Industrial Muffle Furnace 0


Metal melting industrial muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
This industrial muffle furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.


Technical parameter of SUPER industrial muffle furnace :

model  SP-1200B-12L metal melting industrial melting furnace
Standard Working Temperature 1100.C ( continuous )
Maximum Working Temperature 1200.C ( < 3 hrs)
Inside Chamber Size Customizable
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element resistance wire
Thermocouple K type
Max. Power 11KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 set

Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the muffle furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.


Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.


Our Warranty :


Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
