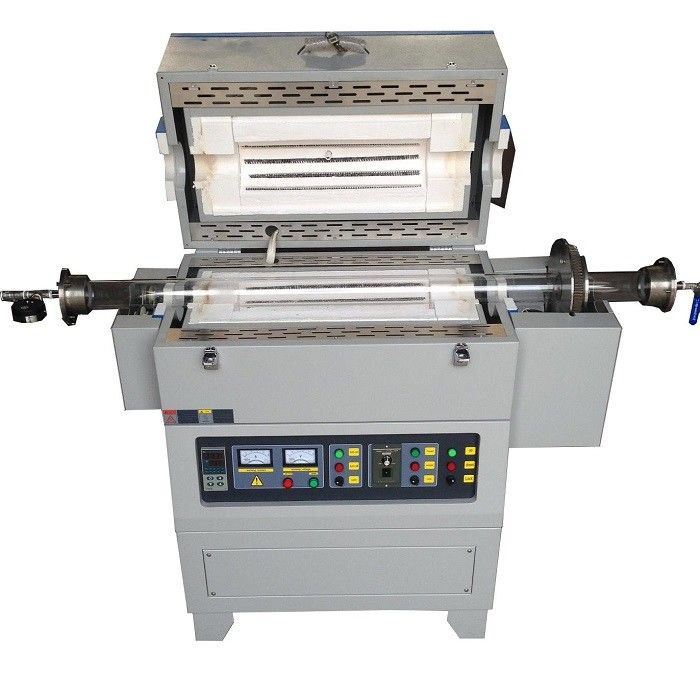

1200C Atmosphere CVD Electric Muffle Furnace

1200C Atmosphere CVD Electric Muffle Furnace
1200C Atmosphere CVD Electric Muffle Furnace

Large Image :  1200C Atmosphere CVD Electric Muffle Furnace

Product Details:

Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1200T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 400sets/month
Detailed Product Description
Product: CVD Tube Lab Electric Furnace Max. Temp: 1200℃
Operation Temp.: 1100℃ Rated Power: 5KW
Furnace Type: Cover Can Be Opened Insulation Material: Alumina Ceramic Fiber Board
Chamber Size: 80*400mm(OD*L) Classification: Laboratory Heating Equipments
Furnace Tube: Quartz Tube Certification: CE
High Light:

1200C vacuum tube furnace

,

CVD Electric Muffle Furnace

,

1200C Electric Muffle Furnace



        1200C Atmosphere CVD Lab Electric Furnace High Consistency Testing Oven



Tube Lab Eelctric Furnace Features :

High film deposition rate: RF glow technology, greatly increasing the deposition rate of the film, the deposition rate can reach 10Å / S

High area uniformity: Advanced multi-point RF feeding technology, special gas path distribution and heating technology, etc., make the film uniformity index reach 8%

High consistency: using the advanced design concept of the semiconductor industry, the deviation between the substrates of one deposition is less than 2%

High process stability: Highly stable equipment ensures continuous and stable process



1200C Atmosphere CVD Electric Muffle Furnace 0



Main technical parameter of SUPER CVD Tube Lab Electric Furnace:

Product name and model SP-1200T-84 lab electric furnace
Heating tube size(OD×L) Dia80x400mm
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1200°C working time ( < 3 hours)
Working temperature 400-1100°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element resistance wire
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Spare function installed computer communication module and RS485 communication interface,to realize the remote control.



SP-1200T  CVD tube furnace standard model

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1200T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-84 Φ80x400 mm(3.2"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-104 Φ100x400 mm(4.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1200T-154 Φ150x400 mm(6.0"x16") TW-1A;1L/S;120W;110V/220V



Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 20 days according to different products request.



Our Warranty :

 One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
